DTC143XCA

The DTC143XCA is NPN Digital Transistor designed by LGE.

Product Overview

LGE

📥 Download Datasheet

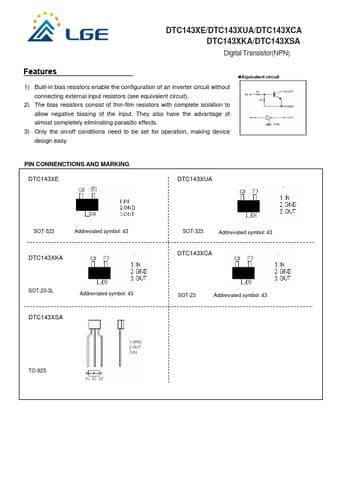

DTC143XCA NPN Digital Transistor by LGE - Datasheet Preview — Datasheet preview – DTC143XCA

Datasheet Details

Part number	DTC143XCA, DTC143XE
Manufacturer	LGE
File Size	145.77 KB
Description	NPN Digital Transistor
Datasheet	DTC143XE-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: DTC143XCA, DTC143XE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTC143XCA datasheet.

Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. PIN.
