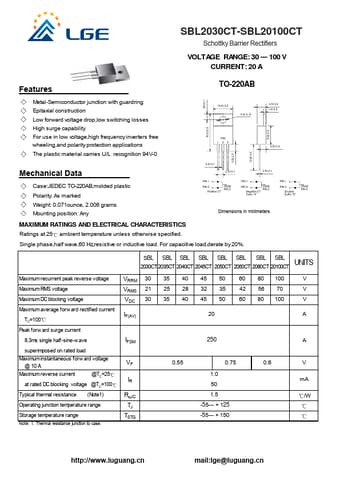

SBL2030CT-SBL20100CT
Schottky Barrier Rectifiers
VOLTAGE RANGE: 30 --- 100 V CURRENT: 20 A
Features
TO-220AB
2.8± 0.1
Metal-Semiconductor junction with guardring Epitaxial construction Low forward voltage drop,low switching losses High surge capability For use in low voltage,high frequency inverters free xxx x wheeling,and polarity protection applications
The plastic material carries U/L recognition 94V-0
19.0± 0.5
10.2± 0.2
3.8± 0.15
4.5± 0.2 1.4± 0.2
PIN 1 23
2.6± 0.2
3.5± 0.3 13.8± 0.5
8.9± 0.2
Mechanical Data
Case:JEDEC TO-220AB,molded plastic Polarity: As marked Weight: 0.071ounce, 2.006 grams Mounting position: Any
0.9± 0.1
2.5± 0.1
0.5± 0.
