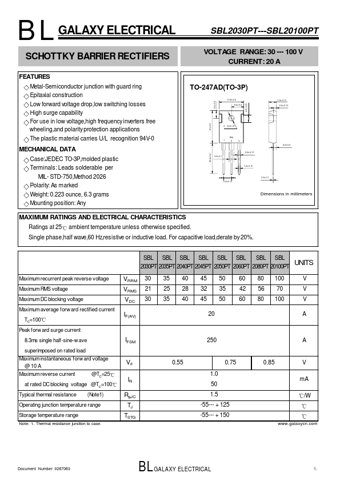

BLGALAXY ELECTRICAL
SBL2030PT---SBL20100PT
SCHOTTKY BARRIER RECTIFIERS
VOLTAGE RANGE: 30 --- 100 V CURRENT: 20 A
FEATURES Metal-Semiconductor junction with guard ring Epitaxial construction Low forward voltage drop,low switching losses High surge capability For use in low voltage,high frequency inverters free
xxxx wheeling,and polarity protection applications The plastic material carries U/L recognition 94V-0
MECHANICAL DATA Case:JEDEC TO-3P,molded plastic Terminals: Leads solderable per MIL- STD-750,Method 2026 Polarity: As marked Weight: 0.223 ounce, 6.3 grams Mounting position: Any
TO-247AD(TO-3P)
15.8± 0.2 8.0± 0.2
5.0± 0.15 2.0± 0.15
4.9± 0.25
6.5± 0.3
21± 0.5
20.4± 0.4
3 .6± 0.15
PIN 12
3
3.0± 0.1
2.2± 0.15 1.2± 0.15
2.4± 0.2
5.4± 0.15
0.6± 0.
