SBL2050PT, SBL2030PT SCHOTTKY BARRIER RECTIFIERS

SBL2050PT Description

BLGALAXY ELECTRICAL SBL2030PT *-SBL20100PT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE: 30 *- 100 V CURRENT: 20 A .

SBL2050PT Applications

* The plastic material carries U/L recognition 94V-0 MECHANICAL DATA Case:JEDEC TO-3P,molded plastic Terminals: Leads solderable per MIL- STD-750,Method 2026 Polarity: As marked Weight: 0.223 ounce, 6.3 grams Mounting position: Any TO-247AD(TO-3P) 15.8± 0.2 8.0± 0.2 5.0± 0.15 2.0± 0.15 4.9± 0.25 6

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL2050PT, SBL2030PT. Please refer to the document for exact specifications by model.

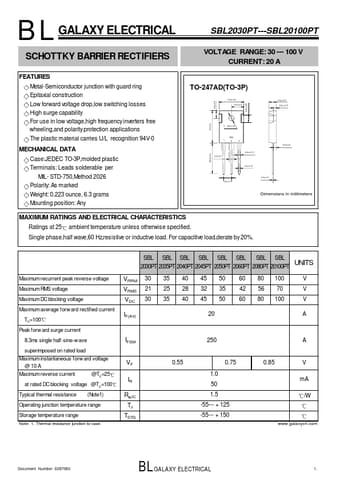

datasheet Preview Page 2

Datasheet Details

Part number
SBL2050PT, SBL2030PT
Manufacturer
GALAXY ELECTRICAL
File Size
184.34 KB
Datasheet
SBL2030PT-GALAXYELECTRICAL.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SBL2050PT, SBL2030PT.
Please refer to the document for exact specifications by model.
