SF1040 - Super Fast Rectifiers

Product Overview

LGE

📥 Download Datasheet

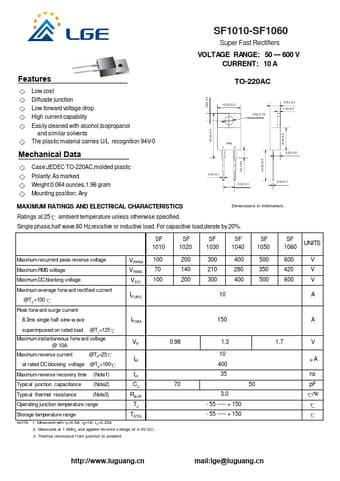

SF1040 Super Fast Rectifiers by LGE - Datasheet Preview — Datasheet preview – SF1040

Datasheet Details

Part number	SF1040
Manufacturer	LGE
File Size	161.35 KB
Description	Super Fast Rectifiers
Datasheet	SF1040 Datasheet
Note	This datasheet PDF includes multiple part numbers: SF1040, SF1010. Please refer to the document for exact specifications by model.
Additional preview pages of the SF1040 datasheet.

Product details

Features

Low cost Diffusde junction Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data 2.8± 0.1 19.0± 0.5 TO-220AC 10.2± 0.2 3.8± 0.15 4.5± 0.2 1.4± 0.2 PIN 12 2.6± 0.2 3.5± 0.3 13.8± 0.5 8.9± 0.2 Case:JEDEC TO-220AC,molded plastic Polarity: As marked Weight:0.064 ounces,1.96 gram Mounting position: Any 0.9± 0.1 5.0± 0.1 0.5± 0.1.
