SF104CT - GLASS PASSIVATED SUPER FAST RECTIFIER

Product Overview

SEMTECH

📥 Download Datasheet

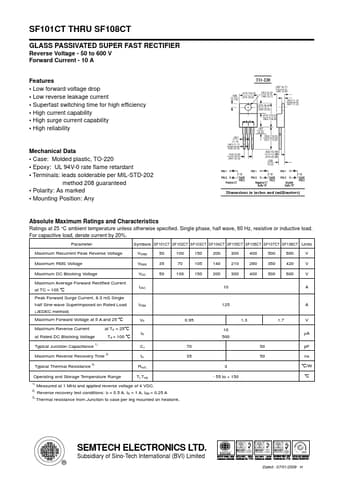

SF104CT GLASS PASSIVATED SUPER FAST RECTIFIER by SEMTECH - Datasheet Preview — Datasheet preview – SF104CT

Datasheet Details

Part number	SF104CT
Manufacturer	SEMTECH
File Size	378.75 KB
Description	GLASS PASSIVATED SUPER FAST RECTIFIER
Datasheet	SF104CT Datasheet
Note	This datasheet PDF includes multiple part numbers: SF104CT, SF101CT. Please refer to the document for exact specifications by model.
Additional preview pages of the SF104CT datasheet.

Product details

Features

Low forward voltage drop.
Low reverse leakage current.
Superfast switching time for high efficiency.
High current capability.
High surge current capability.
High reliability Mechanical Data.
Case: Molded plastic, TO-220.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: leads solderable per MIL-STD-202 method 208 guaranteed.
Polarity: As marked.
Mounting Position: Any Absolute Maximum Ratings and.
