LS4558N

DUAL OPERATIONER AMPLIFIER

LS4558N Features

* z z z z z Operating Voltage (¡À 4V ~¡À 18V) High Voltage Gain (100dB typ.) High Input Resistance (5M¦¸ typ.) Package Outline DIP8¡¢ SIP8¡¢ SOP8 Bipolar Technology LS4558N(SIP-8) PIN CONNFIGURATION LS4558D(DIP-8) 1 2 3 4 5 6 7 8 LS4558F(SOP-8) This Data Sheet is subject to change without n

LS4558N General Description

The LS4558N/D/F is a dual high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process. It offers high speed, a wide band width, and low noise Outstanding thermal characteristics and voltage gain band width make these ICs ideal f.

LS4558N Datasheet (97.50 KB)

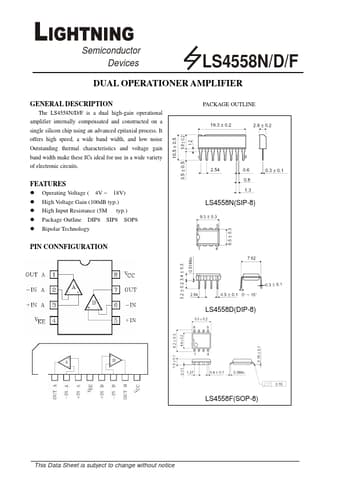

Preview of LS4558N PDF

Datasheet Details

Part number:

LS4558N

Manufacturer:

LIGHTNING

File Size:

97.50 KB

Description:

Dual operationer amplifier.
