LG85740-PF Datasheet - LIGITEK electronics

LG85740-PF RECTANGLE TYPE LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th.

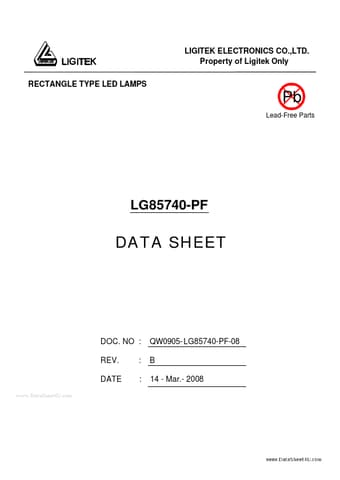

LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only RECTANGLE TYPE LED LAMPS Pb Lead-Free Parts LG85740-PF DATA SHEET DOC. NO : REV. DATE www.DataSheet4U.com QW0905- LG85740-PF-08 B 14 - Mar.- 2008 : : LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only PART NO. LG85740-PF Page 1/5 Package Dimensions 3.9±0.1 3.8±0.1 1.65 ±0.1 7.0 ±0.1 0.25MAX 0.5MAX 1.75 ±0.1 0.7MAX 25.0MIN 0.5 ±0.05 1.0MIN 2.54TYP + - Note : 1.All dimension are in millimeter tolerance is ±0.25mm unless ot.
