LG85240-PF RECTANGLE TYPE LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th.

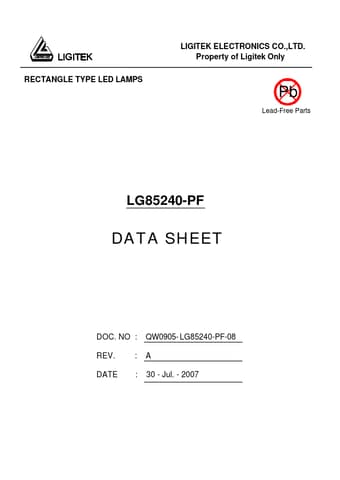

LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only RECTANGLE TYPE LED LAMPS Pb Lead-Free Parts LG85240-PF DATA SHEET DOC. NO : REV. DATE : : QW0905- LG85240-PF-08 A 30 - Jul. - 2007 LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only PART NO. LG85240-PF Page 1/5 Package Dimensions 3.3 1.95 7.0 1.5MAX 2.0 3.40 25.0MIN 0.5 TYP 1.0MIN 2.54TYP + - Note : 1.All dimension are in millimeter tolerance is ±0.25mm unless otherwise noted. 2.Specifications are subject to chang.
