LHIR13743-T50 INFRARED EMITTING DIODES

: The LHIR13743-T50 series are super-high efficiency Gallium Aluminum Arsenide infrared emitting diodes encapsulated in water clear plastic T-1 3/4 package individually Device Selection Guide: PART NO LHIR13743-T50 MATERIAL AlGaAs LENS COLOR Water Clear LIGITEK ELECTRONICS CO.,LTD. www.DataShee.

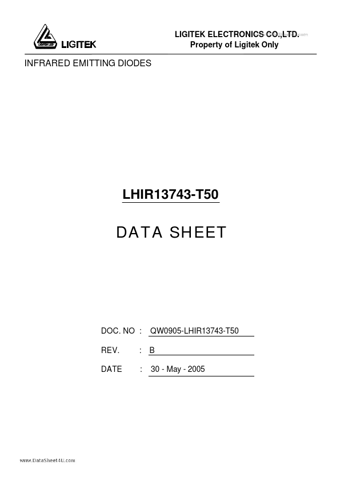

www.DataSheet4U.com LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only INFRARED EMITTING DIODES LHIR13743-T50 DATA SHEET DOC. NO : REV. DATE : : QW0905-LHIR13743-T50 B 30 - May - 2005 LIGITEK ELECTRONICS CO.,LTD. www.DataSheet4U.com Property of Ligitek Only PART NO. LHIR13743-T50 Page 1/4 Package Dimensions 5.0 5.9 7.6 8.6 1.5MAX 25.0MIN 0.5 TYP 1.0MIN 2.54TYP Note : 1.All dimension are in millimeter tolerance is ¡Ó 0.25mm unless otherwise noted. 2.Specifications are subject to c.
