LURF9653-30B Datasheet - LIGITEK electronics

LURF9653-30B SQUARE WITH 4LEADS TYPE LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th.
LIGITEK ELECTRONICS CO.,LTD. www.DataSheet4U.com Property of Ligitek Only SQUARE WITH 4LEADS TYPE LED LAMPS Pb Lead-Free Parts LURF9653-30B DATA SHEET DOC. NO : REV. DATE : QW0905-LURF9653-30B B : 22 - May. - 2006 LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only www.DataSheet4U.com PART NO. LURF9653-30B Page 1/5 Package Dimensions C1.25 R0.7 CATHODE 7.62± 0.5 ANODE 7.62±0.5 ψ3.0 1.9 2.5±0.5 0.4 4.4± 0.5 0.5 1.55 3.5± 0.5 5.08±0.3 5.08 Note : 1.All dimension are in millime.

LURF9653-30B Datasheet (149.92 KB)

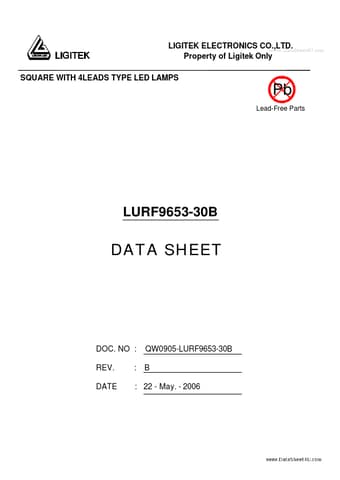

Preview of LURF9653-30B PDF
LURF9653-30B Datasheet Preview Page 2 LURF9653-30B Datasheet Preview Page 3

Datasheet Details

Part number:

LURF9653-30B

Manufacturer:

LIGITEK electronics

File Size:

149.92 KB

Description:

Square with 4leads type led lamps.
