LY55141 Datasheet (LIGITEK electronics) - RECTANGLE TYPE LED LAMPS

LY55141, RECTANGLE TYPE LED LAMPS

This test is conducted for the purpose of detemining the resisance of a part in electrical and themal stressed.

Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5 ℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th

www.DataSheet4U.com LIGITEK ELECTRONICS CO.,LTD.

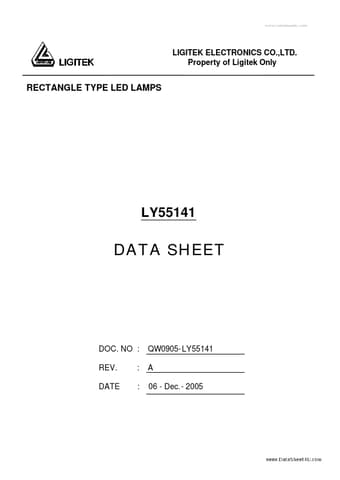

Property of Ligitek Only RECTANGLE TYPE LED LAMPS LY55141 DATA SHEET DOC.

NO : REV.

DATE : : QW0905- LY55141 A 06 - Dec.

- 2005 LIGITEK ELECTRONICS CO.,LTD.

Property of Ligitek Only PART NO.

LY55141 www.DataSheet4U.com Page 1/4 Package Dimensions 2.0 3.0 4.0 1.5 MAX 0.5 TYP 25.0MIN 1.0MIN 2.54TYP + - Note : 1.All dimension are in millimeter tolerance is ±0.25mm unless otherwise noted.

2.Specifications are subject to chang
