SG2524 Datasheet, Modulator, LINFINITY

SG2524 Features

• Modulator
• 8V to 40V operation
• 5V reference
• Reference line and load regulation of 0.4%
• Reference temperature coefficient < ± 1%
• 100Hz

PDF File Details

Part number:

SG2524

Manufacturer:

LINFINITY

File Size:

82.00kb

Download:

📄 Datasheet

Description:

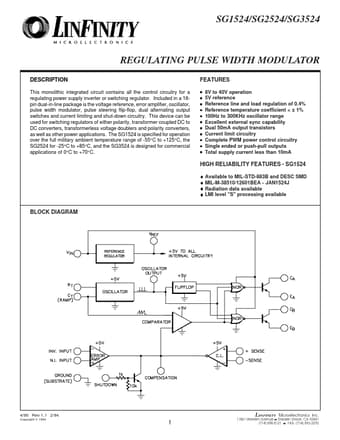

Regulating pulse width modulator. This monolithic integrated circuit contains all the control circuitry for a regulating power supply inverter or switching regulator.

SG2524 Application

• Applications The SG1524 is specified for operation over the full military ambient temperature range of -55°C to +125°C, the SG2524 for -25°C to +85
