* Glass passivated chip Low leakage Uni and Bidirectional unit Excellent clamping capability The plastic material has U/L recognition 94V-O Fast response time MECHANICAL DATA Case : Molded Plastic Marking : Unidirectional - type number and cathode band Bidirectional - type number only Weight : 0.07 ou

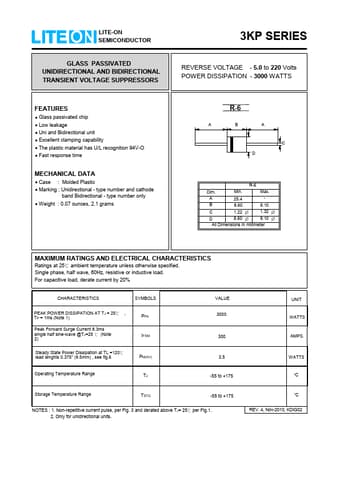

3KP150CA Datasheet (115.37 KB)
3KP150CA
LITE-ON
115.37 KB
Unidirectional and bidirectional transient voltage suppressors.
LITE-ON SEMICONDUCTOR
GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
3KP SERIES
REVERSE VOLTAGE - 5.0 to 220 Volts P.
