5.0SMCJ18A, 5.0SMCJ18-LITE SURFACE MOUNT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS

5.0SMCJ18A Description

LITE-ON SEMICONDUCTOR 5.0SMCJ SERIES SURFACE MOUNT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS STAND-OFF VOLTAGE - 18 to 36 Volts POWER DISSIPATIO.

5.0SMCJ18A Applications

* Reliable low cost construction utilizing molded plastic technique Plastic material has UL flammability classification 94V-O Fast response time: typically less than 1.0ns
* RoHS compliant MECHANICAL DATA Case : Molded plastic Polarity : by cathode band denotes uni-directional device none cathode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 5.0SMCJ18A, 5.0SMCJ18-LITE. Please refer to the document for exact specifications by model.

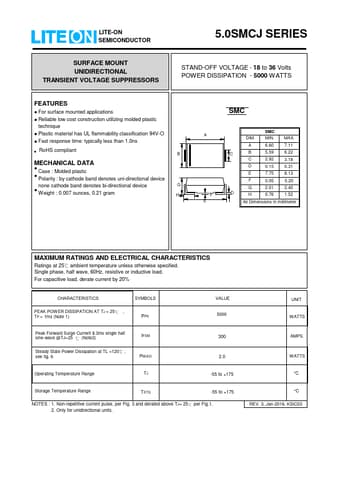

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
5.0SMCJ18A, 5.0SMCJ18-LITE
Manufacturer
LITE-ON
File Size
343.25 KB
Datasheet
5.0SMCJ18-LITE-ON.pdf
Description
SURFACE MOUNT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
Note
This datasheet PDF includes multiple part numbers: 5.0SMCJ18A, 5.0SMCJ18-LITE.
Please refer to the document for exact specifications by model.
