DF15005S, DF15005S-LITE, SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS DF15005S thru DF1512S REVERSE VOLTAGE * 50 to 1200 Volts FORWARD CURRENT * 1.5 Amper.

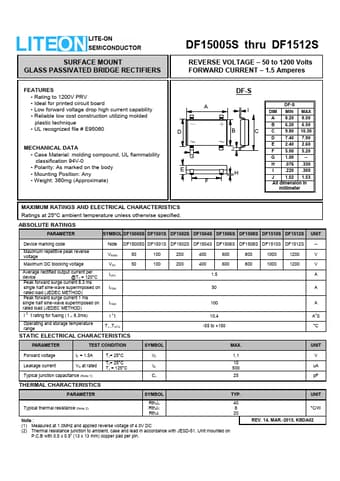

datasheet Preview Page 1 from Datasheet4u.com

DF15005S-LITE-ON.pdf

DF15005S Datasheet Preview — This datasheet PDF includes multiple part numbers: DF15005S, DF15005S-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DF15005S, DF15005S-LITE

Manufacturer:

LITE-ON

File Size:

99.66 KB

Description:

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: DF15005S, DF15005S-LITE.
Please refer to the document for exact specifications by model.

Features

* Rating to 1200V PRV
* Ideal for printed circuit board
* Low forward voltage drop high current capability
* Reliable low cost construction utilizing molded plastic technique
* UL recognized file # E95060 MECHANICAL DATA
* Case Material: molding compou
