LTD-5523AB Datasheet - LITE-ON

LTD-5523AB LED Display

The LTD-5523AB is a 0.56 inch (14.22 mm) digit height dual digit seven-segment display. The device utilizes blue chips, which are made from GaN on a SiC substrate, and has a gray face and white segments. DEVICE PART NO BLUE LTD-5523AB DESCRIPTION COMMON CATHODE RT. HAND DECIMAL PART NO.: LTD-552.

LTD-5523AB-LITEON.pdf

Preview of LTD-5523AB PDF

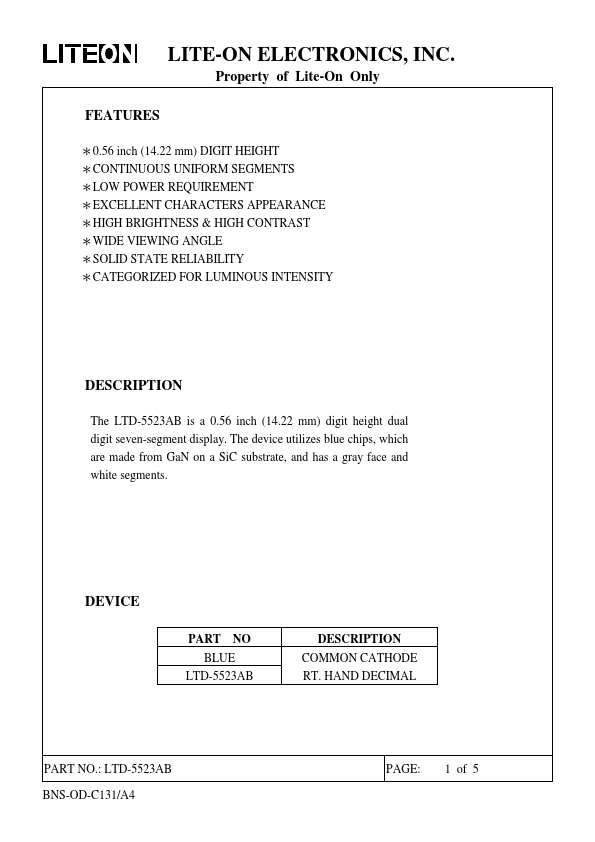

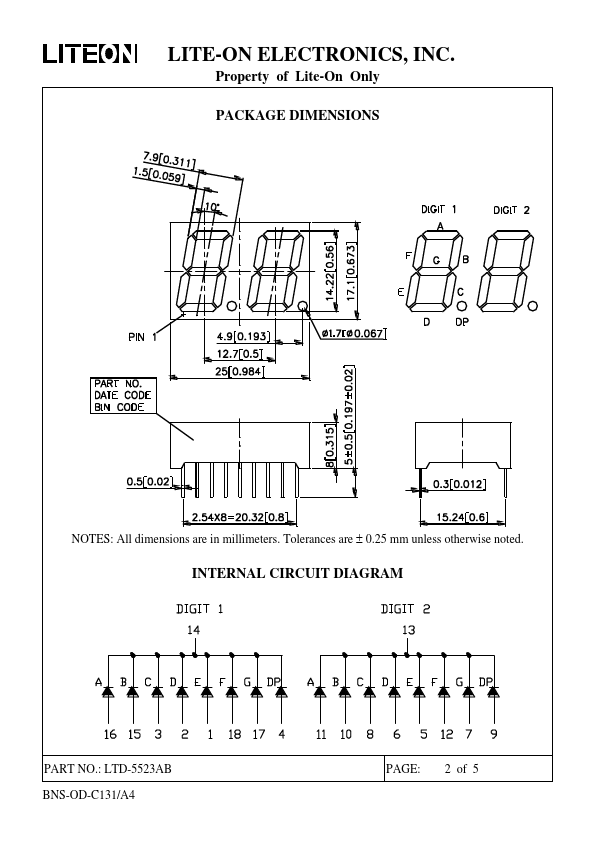

LTD-5523AB Datasheet Preview Page 2 LTD-5523AB Datasheet Preview Page 3

Datasheet Details

Part number:

LTD-5523AB

Manufacturer:

LITE-ON

File Size:

351.97 KB

Description:

Led display.
