LTS-5701AKF, LTS-5701AKF-LITE Datasheet - LITE-ON

LTS-5701AKF LED Display

The LTS-5701AKF is a 0.56 inch (14.22 mm) height digit display. The device utilizes AS-AlInGaP Yellow Orange LED chips (AlInGaP epi on GaAs substrate). The display has a gray face and white segments. DEVICE PART NO. AlInGaP Yellow Orange LTS-5701AKF DESCRIPTION Common Anode Rt. Hand Decimal PART .

LTS-5701AKF-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTS-5701AKF, LTS-5701AKF-LITE. Please refer to the document for exact specifications by model.

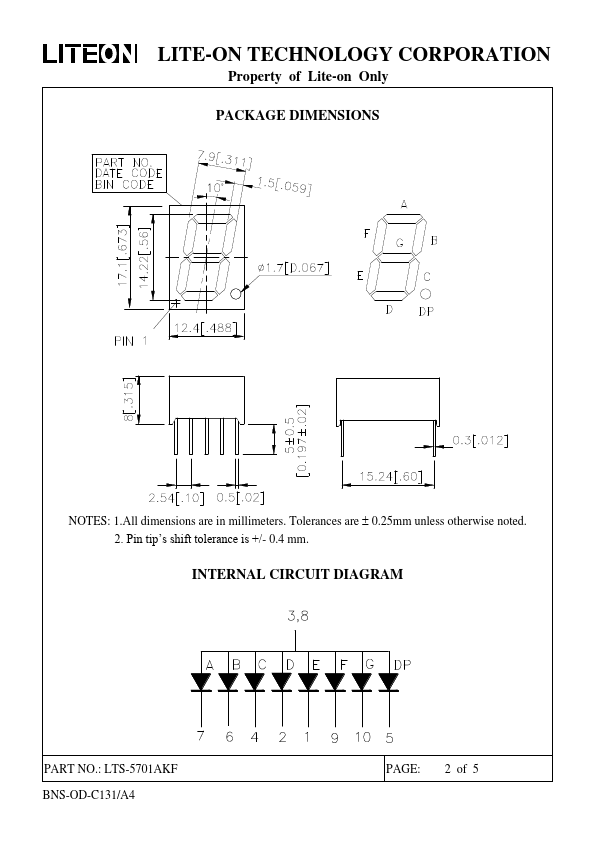

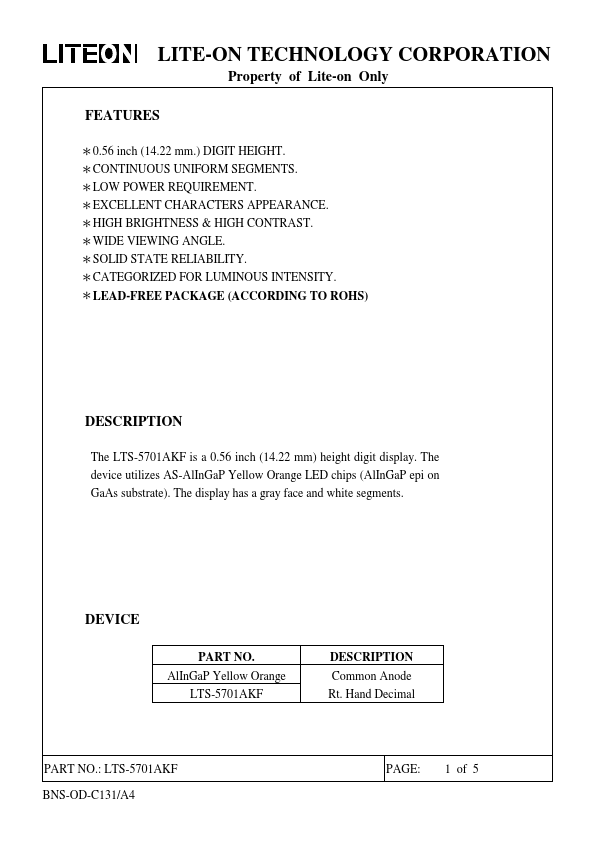

LTS-5701AKF Datasheet Preview Page 2 LTS-5701AKF Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-5701AKF, LTS-5701AKF-LITE

Manufacturer:

LITE-ON

File Size:

340.91 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTS-5701AKF, LTS-5701AKF-LITE.
Please refer to the document for exact specifications by model.
