MBR2070CT - SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR2070CT, a member of the MBR2070CT-LITE SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

  • Metal of silicon rectifier, majority carrier conduction.
  • Guard ring for transient protection.
  • Low power loss, high efficiency.
  • High current capability, low VF.
  • High surge capacity.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

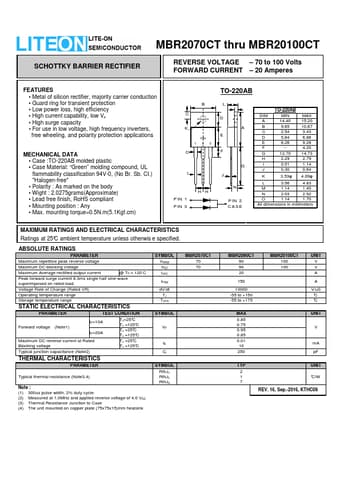

Datasheet preview – MBR2070CT

Datasheet Details

Part number MBR2070CT
Manufacturer LITEON
File Size 52.37 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR2070CT Datasheet
Additional preview pages of the MBR2070CT datasheet.

📁 Similar Datasheet

  • MBR2070CT - 20A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBR2070CT - SWITCHMODE Power Rectifiers (Motorola)
  • MBR2070CT - 20A SCHOTTKY RECTIFIERS (Digitron Semiconductors)
  • MBR2070CT - 20A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (ETC)
  • MBR2070PT - DUAL SCHOTTKY RECTIFIERS (GALAXY ELECTRICAL)
  • MBR20 - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR200100 - 200 Amp Rectifier 20 to 100 Volts Schottky Barrier (Micro Commercial Components)
  • MBR200100CT - 200 Amp Rectifier 20 to 100 Volts Schottky Barrier (Micro Commercial Components)
  • MBR200100CT - Schottky Power Diode (Naina Semiconductor)
  • MBR200100CT - Silicon Power Schottky Diode (America Semiconductor)
Other Datasheets by LITE-ON

Full PDF Text Transcription

Click to expand full text
SCHOTTKY BARRIER RECTIFIER MBR2070CT thru MBR20100CT REVERSE VOLTAGE – 70 to 100 Volts FORWARD CURRENT – 20 Amperes FEATURES • Metal of silicon rectifier, majority carrier conduction • Guard ring for transient protection • Low power loss, high efficiency • High current capability, low VF • High surge capacity • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case :TO-220AB molded plastic • Case Material: “Green” molding compound, UL flammability classification 94V-0, (No Br. Sb. CI.) "Halogen-free" • Polarity : As marked on the body • Wight : 2.0275grams(Approximate) • Lead free finish, RoHS compliant • Mounting position : Any • Max. mounting torque=0.5N.m(5.1Kgf.
