RS3AB, RS3AB-LITE SURFACE MOUNT FAST RECOVERY RECTIFIERS

RS3AB Description

LITE-ON SEMICONDUCTOR SURFACE MOUNT FAST RECOVERY RECTIFIERS RS3AB thru RS3MB REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 3.0 Amperes FEATU.

RS3AB Applications

* Glass passivated chip Low reverse leakage current Low forward voltage drop High current capability MECHANICAL DATA Case : Molded plastic Case Material: Molding compound, UL Flammability classification 94V-0, (No Br. Sb. Cl. ) "Halogen-free". Polarity : Color band denotes cathode Weight : 0.003 ounces

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3AB, RS3AB-LITE. Please refer to the document for exact specifications by model.

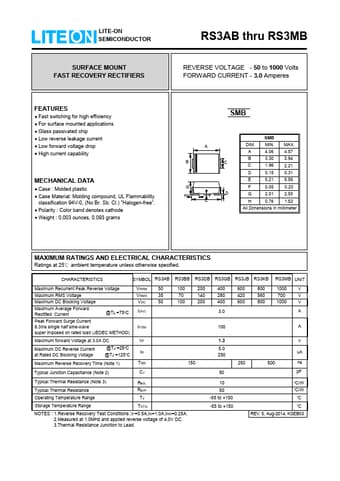

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3AB, RS3AB-LITE
Manufacturer
LITE-ON
File Size
62.70 KB
Datasheet
RS3AB-LITE-ON.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RS3AB, RS3AB-LITE.
Please refer to the document for exact specifications by model.
