RS3AF - Fast Recovery Rectifier Diode

RS3AF Description

RS3AF THRU RS3MF SMBF Fast Recovery Rectifier Diode * .

RS3AF Features

* Io 3.0A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability

RS3AF Applications

* For general power supply single-phase rectifier
* Outline Dimensions and Mark SMBF 5.50 5.10 4.40 4.10 1.35 1.15 7.00 6.50 3.70 2.20 3.50 1.90 (2.9) (4.2) (2.0) 0.26 0.18 1.0 typical Dimensions in inches and (millimeters)
* （） Limiting Values（Absolute Maximum Rating） Item

📥 Download Datasheet

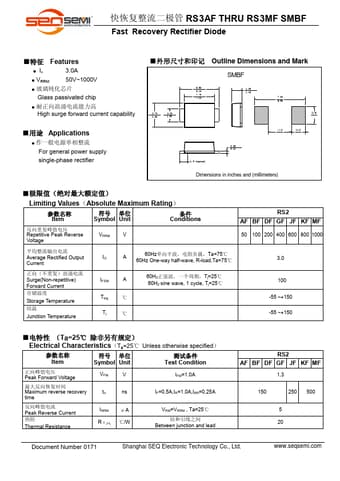

Preview of RS3AF PDF
datasheet Preview Page 2

Datasheet Details

Part number
RS3AF
Manufacturer
SEQ
File Size
408.49 KB
Datasheet
RS3AF-SEQ.pdf
Description
Fast Recovery Rectifier Diode
