RS3BF

Fast Recovery Rectifier Diode

RS3BF Features

* Io 3.0A

* VRRM 50V~1000V

* Glass passivated chip

* High surge forward current capability

* Applications

* For general power supply single-phase rectifier

* Outline Dimensions and Mark SMBF 5.50 5.10 4.40 4.10 1.35 1.15 7.00 6.50 3.70 2.20 3.50 1.90 (2.9

RS3BF Datasheet (408.49 KB)

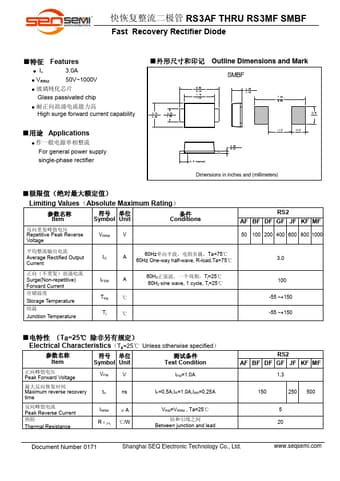

Preview of RS3BF PDF

Datasheet Details

Part number:

RS3BF

Manufacturer:

SEQ

File Size:

408.49 KB

Description:

Fast recovery rectifier diode.
