S5AC, S5AC-LITE SURFACE MOUNT GLASS PASSIVATED RECTIFIERS

LITE-ON

S5AC Description

LITE-ON SEMICONDUCTOR SURFACE MOUNT GLASS PASSIVATED RECTIFIERS S5AC thru S5MC REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 5.0 Amperes FEAT.

S5AC Applications

* Low reverse leakage current Low forward voltage drop High current capability Plastic material has UL flammability classification 94V-0 MECHANICAL DATA Case : Molded plastic Polarity : Color band denotes cathode Weight : 0.007 ounces, 0.21 grams SMC SMC A DIM. MIN. MAX. A 6.60 7.11 B C B 5.59 6.22 C

📥 Download Datasheet

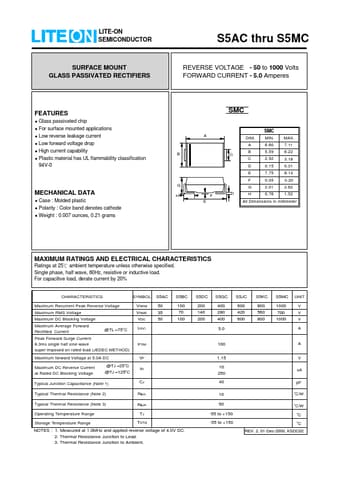

S5AC Datasheet Preview — This datasheet PDF includes multiple part numbers: S5AC, S5AC-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: S5AC, S5AC-LITE
Manufacturer: LITE-ON
File Size: 33.51 KB
Datasheet: S5AC-LITE-ON.pdf
Description: SURFACE MOUNT GLASS PASSIVATED RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: S5AC, S5AC-LITE.
Please refer to the document for exact specifications by model.
