SBL1660CT, SBL1630CT-LITE, SCHOTTKY BARRIER RECTIFIERS

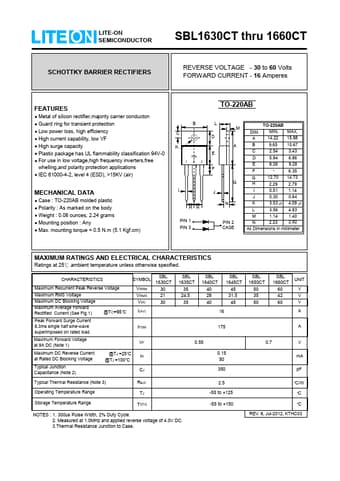

LITE-ON SEMICONDUCTOR SBL1630CT thru 1660CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 16 Amperes .

SBL1630CT-LITE-ON.pdf

SBL1660CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SBL1660CT, SBL1630CT-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBL1660CT, SBL1630CT-LITE

Manufacturer:

LITE-ON

File Size:

76.36 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SBL1660CT, SBL1630CT-LITE.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

Applications

* IEC 61000-4-2, level 4 (ESD), >15KV (air) MECHANICAL DATA Case : TO-220AB molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) TO-220AB B C K PIN 12 3 I HH PIN 1 PIN 3 L M D A E F G J N PIN 2 CASE TO-
