CNY17F-3, CNY17F-1 - Photocoupler

LITEON

Datasheet Details

Part number	CNY17F-3, CNY17F-1
Manufacturer	LITEON ↗
File Size	409.27 KB
Description	Photocoupler
Datasheet	CNY17F-1-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: CNY17F-3, CNY17F-1. Please refer to the document for exact specifications by model.

1.1

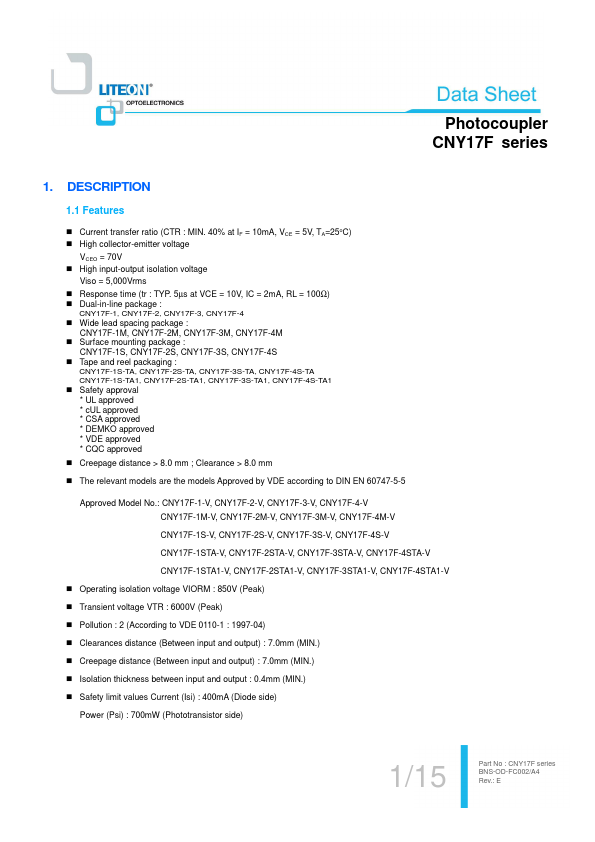

Current transfer ratio (CTR : MIN. 40% at IF = 10mA, VCE = 5V, TA=25oC) High collector-emitter voltage VCEO = 70V High input-output isolation voltage Viso = 5,000Vrms Response time (tr : TYP. 5µs at VCE = 10V, IC = 2mA, RL = 100Ω) Dual-in-line package : CNY17F-1, CNY17F-2, CNY17F-3, CNY17F-4 Wide lead spacing package : CNY17F-1M, CNY17F-2M, CNY17F-3M, CNY17F-4M Surface mounting package : CNY17F-1S, CNY17F-2S, CNY17F-3S, CNY17F-4S Tape and reel packaging : CNY17F-1S-TA, CNY17F-2S-TA, CNY17F-3S-TA.
