LTL-155EHA - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-155EHA Datasheet Preview — Preview of LTL-155EHA PDF

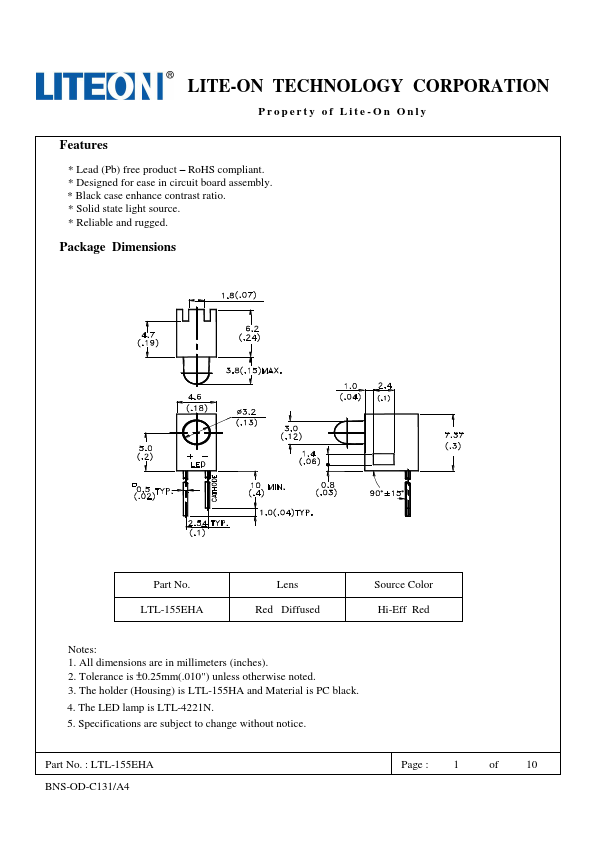

datasheet Preview Page 2

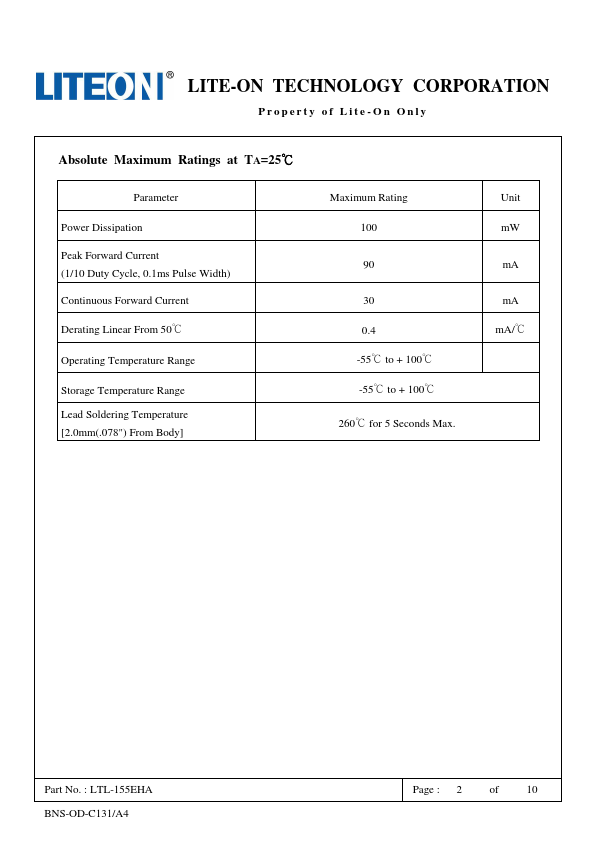

datasheet Preview Page 3

Datasheet Details

Part number	LTL-155EHA
Manufacturer	LITEON
File Size	685.18 KB
Description	Through Hole Lamp
Datasheet	LTL-155EHA-LITEON.pdf

LTL-155EHA Product details

Features

Lead (Pb) free product.
RoHS compliant.
Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Solid state light source.
Reliable and rugged. Package Dimensions Part No. LTL-155EHA Lens Red Diffused Source Color Hi-Eff Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. The holder (Housing) is LTL-155HA and Material is PC black. 4. The LED lamp is LTL-4221N. 5. Spec.
