LTL-1KHCE-S1HA - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-1KHCE-S1HA Datasheet Preview — Preview of LTL-1KHCE-S1HA PDF

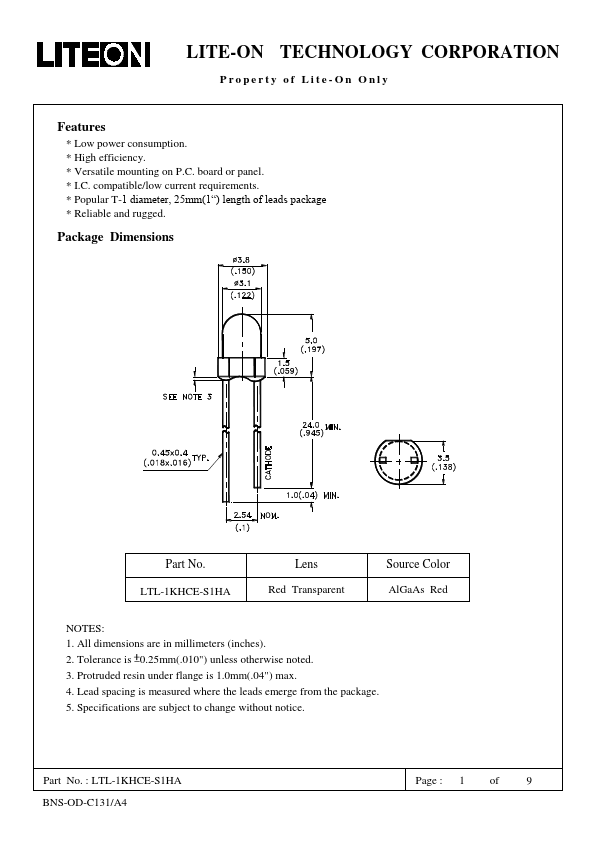

datasheet Preview Page 2

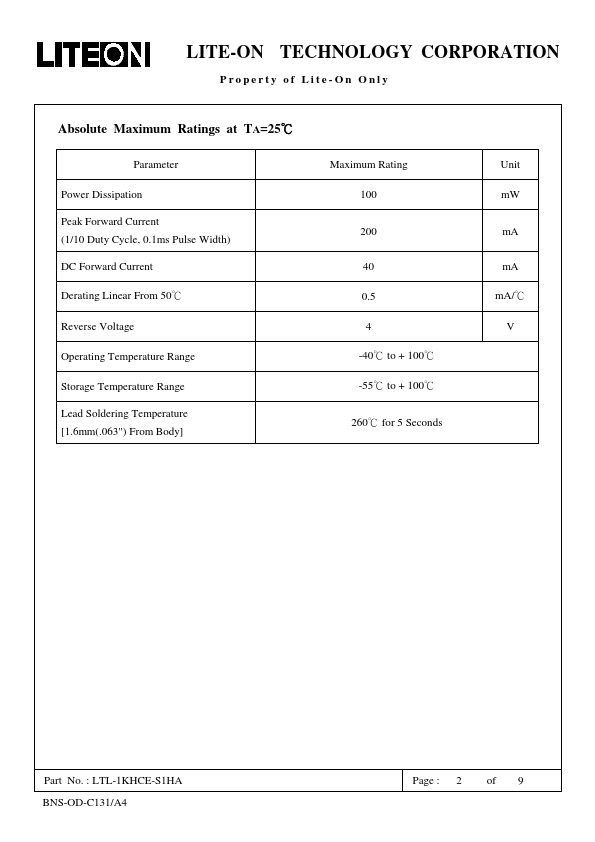

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1KHCE-S1HA
Manufacturer	LITEON
File Size	632.81 KB
Description	Through Hole Lamp
Datasheet	LTL-1KHCE-S1HA-LITEON.pdf

LTL-1KHCE-S1HA Product details

Features

Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. compatible/low current requirements.
Popular T-1 diameter, 25mm(1“) length of leads package.
Reliable and rugged. Package Dimensions Part No. LTL-1KHCE-S1HA Lens Red Transparent Source Color AlGaAs Red NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead sp.
