LTL-1LHGK-002A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-1LHGK-002A Datasheet Preview — Preview of LTL-1LHGK-002A PDF

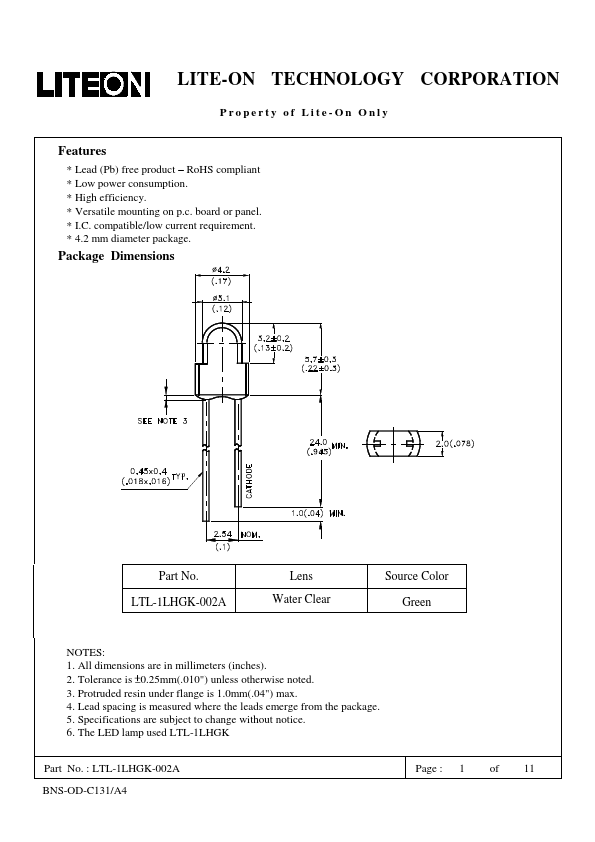

datasheet Preview Page 2

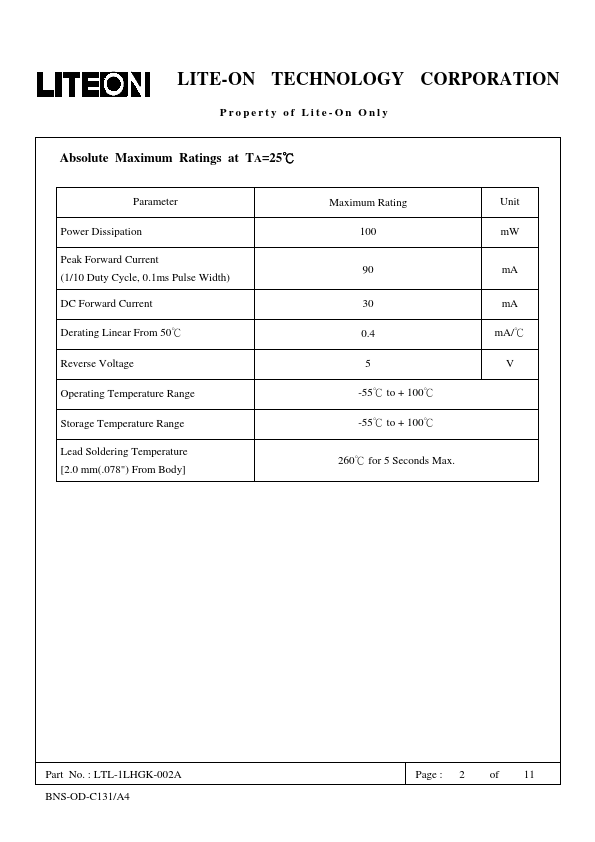

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1LHGK-002A
Manufacturer	LITEON
File Size	698.90 KB
Description	Through Hole Lamp
Datasheet	LTL-1LHGK-002A-LITEON.pdf

LTL-1LHGK-002A Product details

Features

Lead (Pb) free product.
RoHS compliant.
Low power consumption.
High efficiency.
Versatile mounting on p. c. board or panel.
I. C. compatible/low current requirement.
4.2 mm diameter package. Package Dimensions Part No. LTL-1LHGK-002A Lens Water Clear Source Color Green NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is meas.
