LTL-1NHG - Through Hole Lamp

LITEON

📥 Download Datasheet

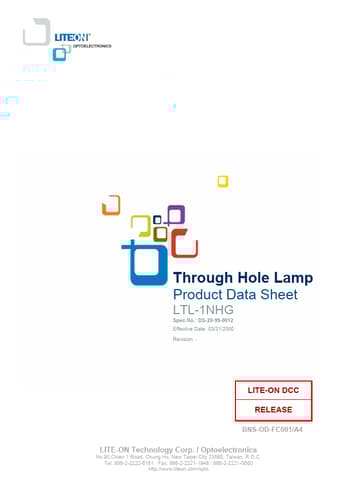

LTL-1NHG Datasheet Preview — Preview of LTL-1NHG PDF

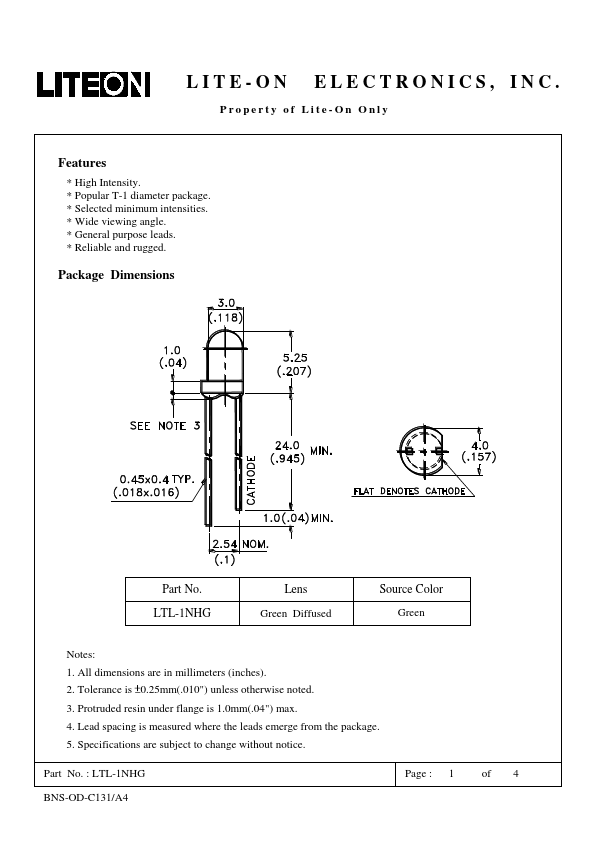

datasheet Preview Page 2

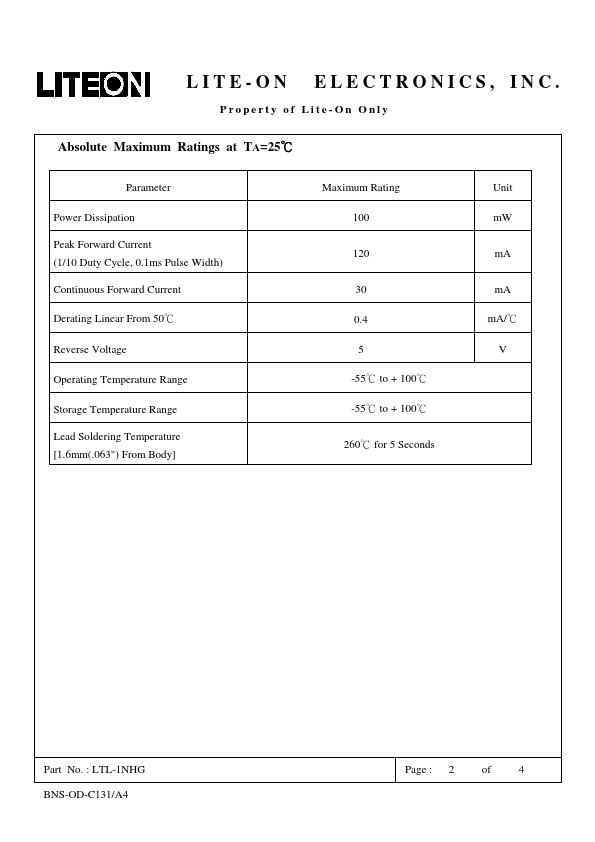

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1NHG
Manufacturer	LITEON
File Size	399.96 KB
Description	Through Hole Lamp
Datasheet	LTL-1NHG-LITEON.pdf

LTL-1NHG Product details

Features

High Intensity.
Popular T-1 diameter package.
Selected minimum intensities.
Wide viewing angle.
General purpose leads.
Reliable and rugged. Package Dimensions Part No. LTL-1NHG Lens Green Diffused Source Color Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specificati.
