LTL-42M6NMHKP - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-42M6NMHKP Datasheet Preview — Preview of LTL-42M6NMHKP PDF

Datasheet Details

Part number	LTL-42M6NMHKP
Manufacturer	LITEON
File Size	612.90 KB
Description	Through Hole Lamp
Datasheet	LTL-42M6NMHKP-LITEON.pdf

LTL-42M6NMHKP Product details

Description

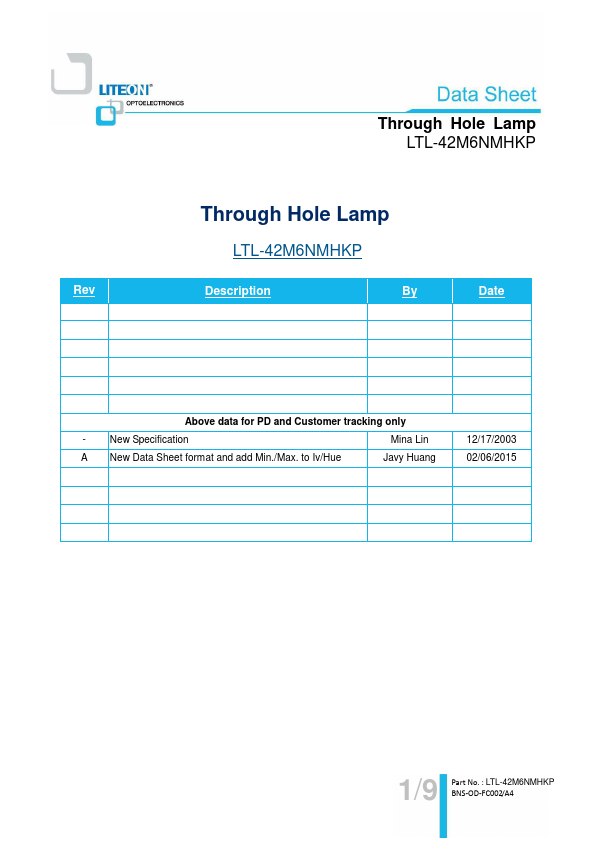

By Date Above data for PD and Customer tracking only - New Specification Mina Lin A New Data Sheet format and add Min./Max.to Iv/Hue Javy Huang 12/17/2003 02/06/2015 1/9 Part No.: LTL-42M6NMHKP BNS-OD-FC002/A4 Through Hole Lamp LTL-42M6NMHKP 1. Description CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps.Lite-On CBI is available in a wide variety of packages, including top-view (Spacer) or right angle and horizontal or

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
T-1 lamp: Emitted source colors are 569nm yellow green and 625nm red. 1.2.
