LTL-709L - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-709L Datasheet Preview — Preview of LTL-709L PDF

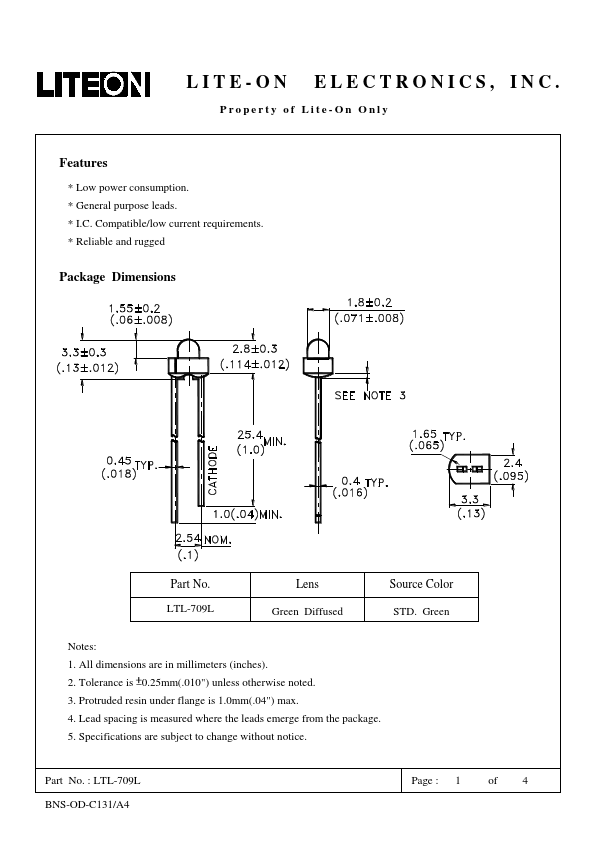

datasheet Preview Page 2

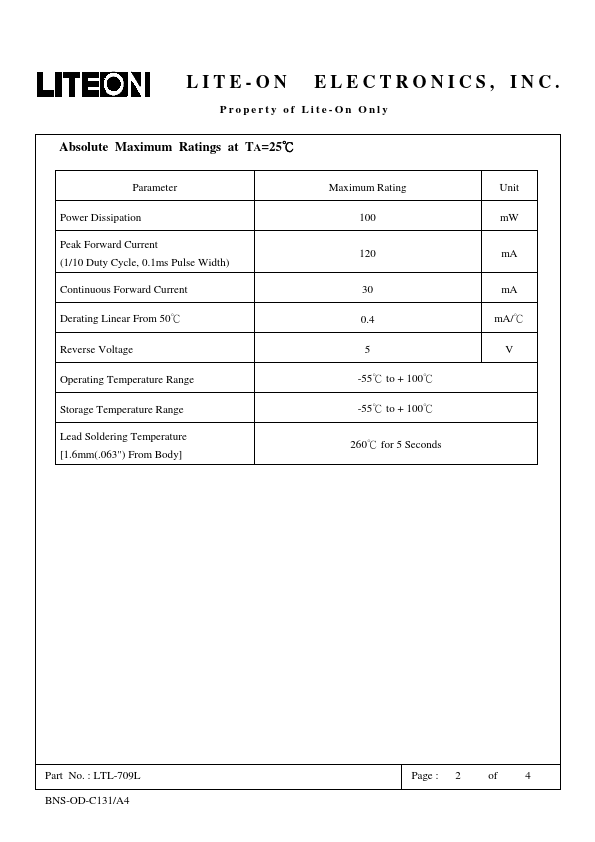

datasheet Preview Page 3

Datasheet Details

Part number	LTL-709L
Manufacturer	LITEON
File Size	414.83 KB
Description	Through Hole Lamp
Datasheet	LTL-709L-LITEON.pdf

LTL-709L Product details

Features

Low power consumption.
General purpose leads.
I. C. Compatible/low current requirements.
Reliable and rugged Package Dimensions Part No. LTL-709L Lens Green Diffused Source Color STD. Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without notic.
