LTL-816GE-004A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-816GE-004A Datasheet Preview — Preview of LTL-816GE-004A PDF

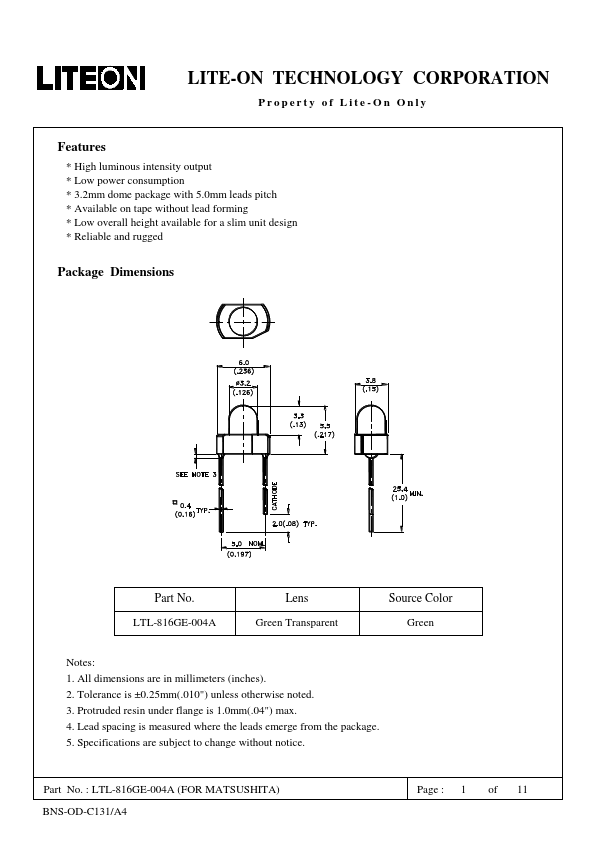

datasheet Preview Page 2

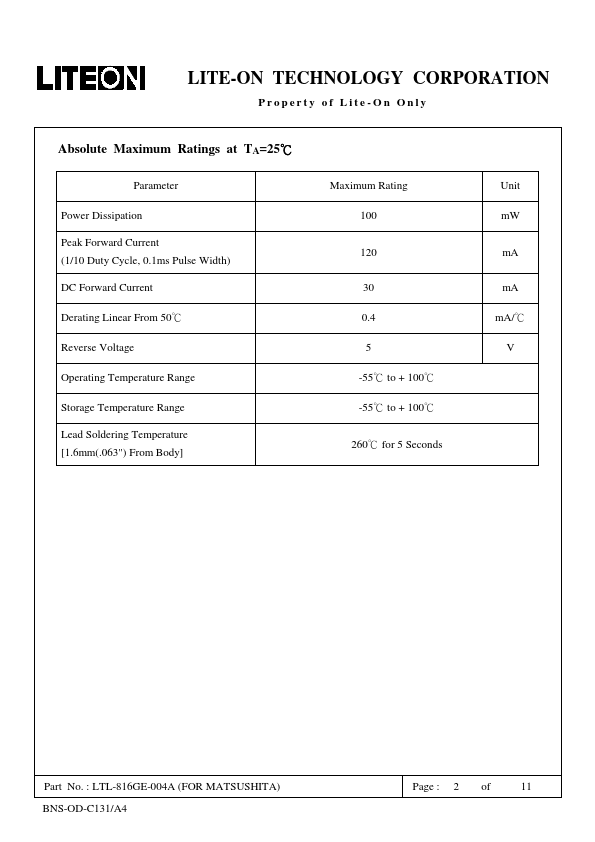

datasheet Preview Page 3

Datasheet Details

Part number	LTL-816GE-004A
Manufacturer	LITEON
File Size	1.49 MB
Description	Through Hole Lamp
Datasheet	LTL-816GE-004A-LITEON.pdf

LTL-816GE-004A Product details

Features

High luminous intensity output.
Low power consumption.
3.2mm dome package with 5.0mm leads pitch.
Available on tape without lead forming.
Low overall height available for a slim unit design.
Reliable and rugged Package Dimensions Part No. LTL-816GE-004A Lens Green Transparent Source Color Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead.
