LTL-M11KG1H300U - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-M11KG1H300U Datasheet Preview — Preview of LTL-M11KG1H300U PDF

Datasheet Details

Part number	LTL-M11KG1H300U
Manufacturer	LITEON
File Size	396.80 KB
Description	Through Hole Lamp
Datasheet	LTL-M11KG1H300U-LITEON.pdf

LTL-M11KG1H300U Product details

Description

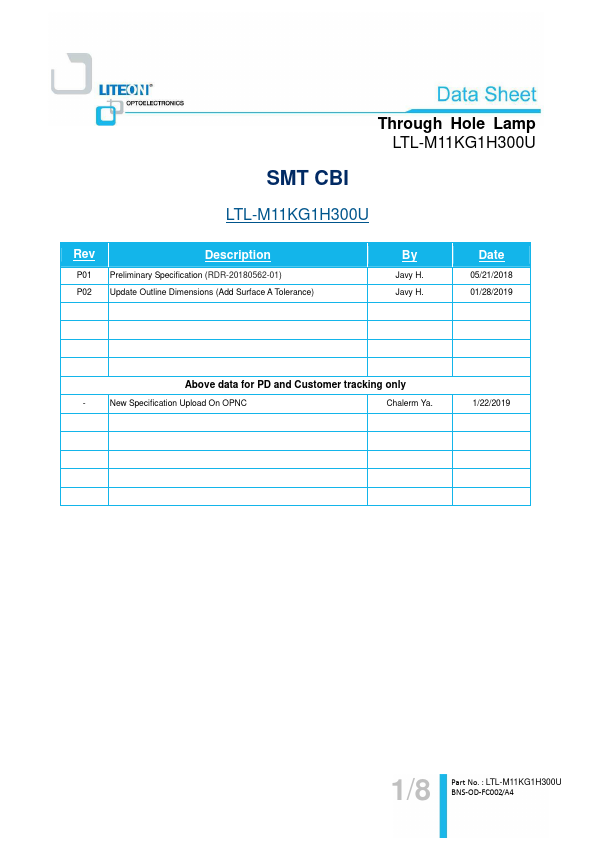

Preliminary Specification (RDR-20180562-01) Update Outline Dimensions (Add Surface A Tolerance) By Javy H.Javy H.Date 05/21/2018 01/28/2019 Above data for PD and Customer tracking only - New Specification Upload On OPNC Chalerm Ya.1/22/2019 1/8 Part No.: LTL-M11KG1H300U BNS-OD-FC002/A4 Through Hole Lamp LTL-M11KG1H300U 1. Description CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps.Lite-On CBI is available in a wide

Features

Available for Surface Mount Technology process.
Black case enhance contrast ratio.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
Source colors is AlInGaP green chip with white diffused lens.
Preconditioning: accelerate to JEDEC level 3 1.2.
