LTL1KHKSD-071A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL1KHKSD-071A Datasheet Preview — Preview of LTL1KHKSD-071A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL1KHKSD-071A
Manufacturer	LITEON
File Size	1.35 MB
Description	Through Hole Lamp
Datasheet	LTL1KHKSD-071A-LITEON.pdf

LTL1KHKSD-071A Product details

Features

High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. Board or panel.
I. C. Compatible/low current requirement.

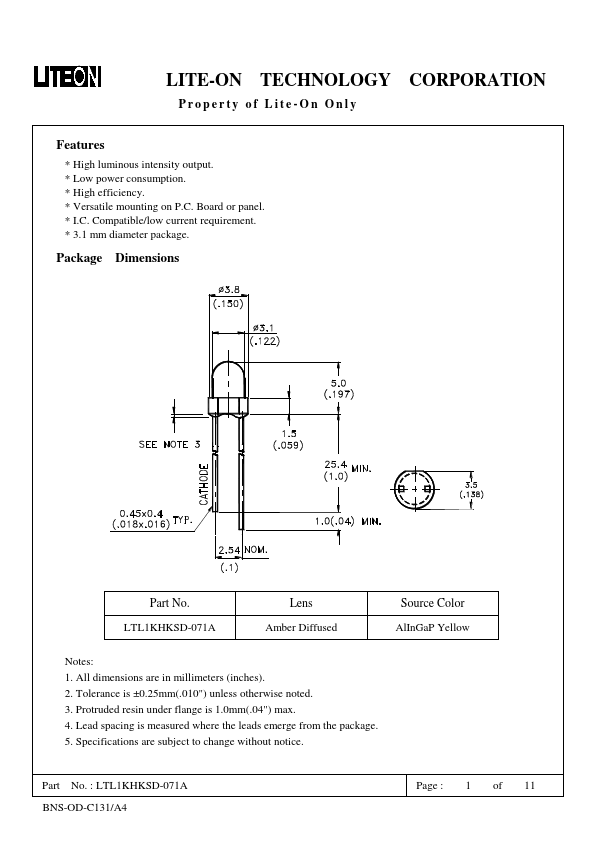

3.1 mm diameter package. Package Dimensions Part No. LTL1KHKSD-071A Lens Amber Diffused Source Color AlInGaP Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured.
