LTL2P3TGZ2KS, Through Hole Lamp

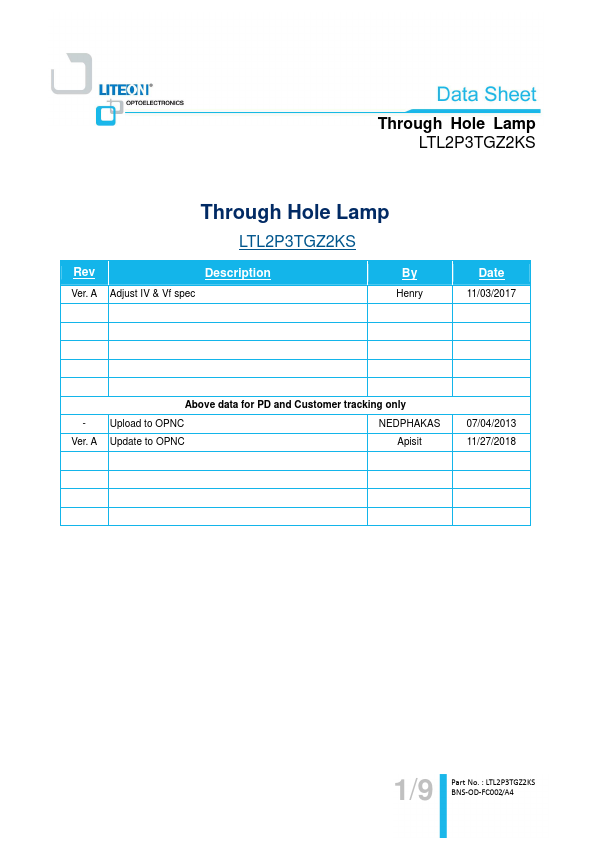

Through Hole Lamp Product Data Sheet LTL2P3TGZ2KS Spec No.:DS20-2012-0179 Effective Date: 07/10/2019 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 .
Ver.

datasheet Preview Page 1 from Datasheet4u.com

LTL2P3TGZ2KS-LITEON.pdf

LTL2P3TGZ2KS Datasheet Preview — Preview of LTL2P3TGZ2KS PDF

Datasheet Details

Part number:

LTL2P3TGZ2KS

Manufacturer:

LITEON

File Size:

409.73 KB

Description:

Through Hole Lamp

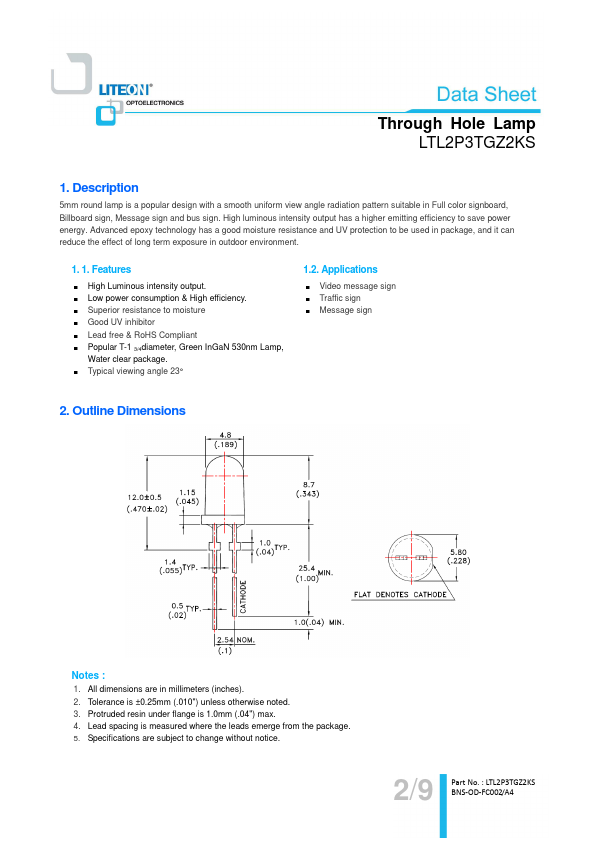

Features

* High Luminous intensity output.
* Low power consumption & High efficiency.
* Superior resistance to moisture
* Good UV inhibitor
* Lead free & RoHS Compliant
* Popular T-1 3/4diameter, Green InGaN 530nm Lamp, Water clear package.
* Typical viewing angle 23° 1.2. Applic

Applications

* Video message sign
* Traffic sign
* Message sign 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where the leads emerg
