LTLA2V3EX3K Datasheet - LITEON

LTLA2V3EX3K, Through Hole Lamp

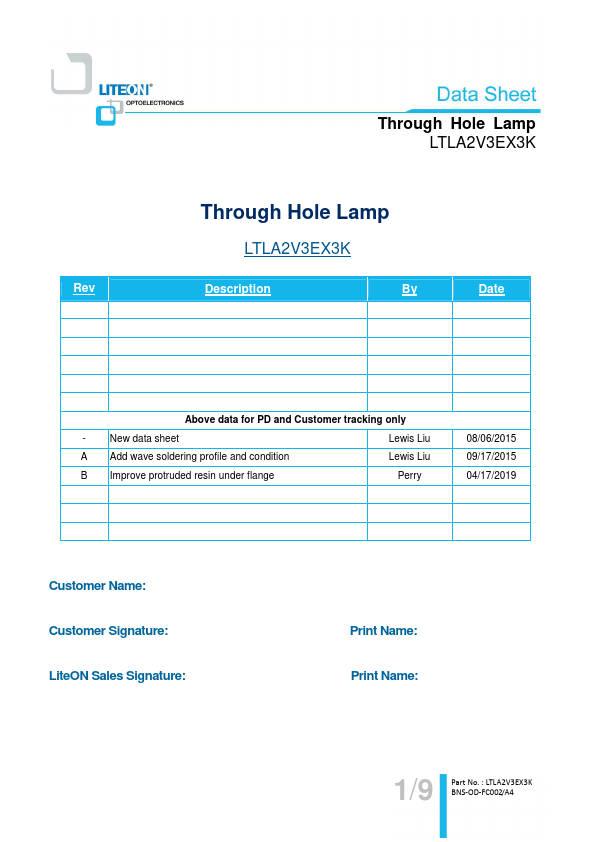

Through Hole Lamp Product Data Sheet LTLA2V3EX3K Spec No.:DS20-2015-0229 Effective Date: 07/10/2019 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 L.
By Date Above data for PD and Customer tracking only - New data sheet Lewis Liu A Add wave soldering profile and condition Lewis Liu B Improve.
 datasheet Preview Page 1 from Datasheet4u.com

LTLA2V3EX3K-LITEON.pdf

Preview of LTLA2V3EX3K PDF

Datasheet Details

Part number:

LTLA2V3EX3K

Manufacturer:

LITEON

File Size:

478.38 KB

Description:

Through Hole Lamp

Features

* High Luminous intensity output.
* Low power consumption & High efficiency.
* Superior resistance to moisture
* Good UV inhibitor
* Lead free & RoHS Compliant
* Popular T-1 3/4diameter, Red AlInGaP 624nm Lamp, Water clear package.

Applications

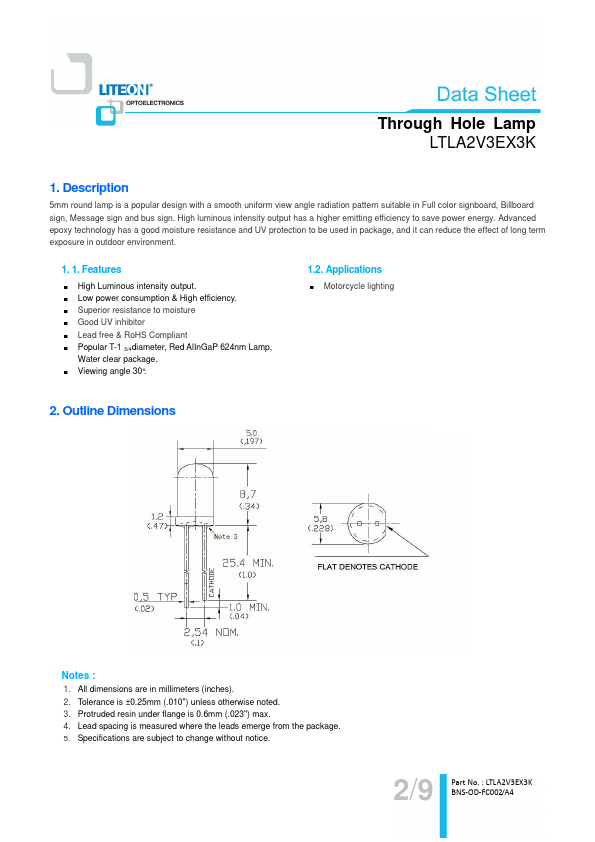

* Motorcycle lighting 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 0.6mm (.023") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specification
