LTST-C191KRKT
Features
- Meet ROHS, Green Product.
- Super Thin (0.55H mm) Chip LED.
- Ultra Bright Al In Ga P Chip LED.
- Package In 8mm Tape On 13" Diameter Reels.
- EIA STD package.
- I.C. patible.
- patible With Automatic Placement Equipment.
- patible With Infrared Reflow Solder Process.

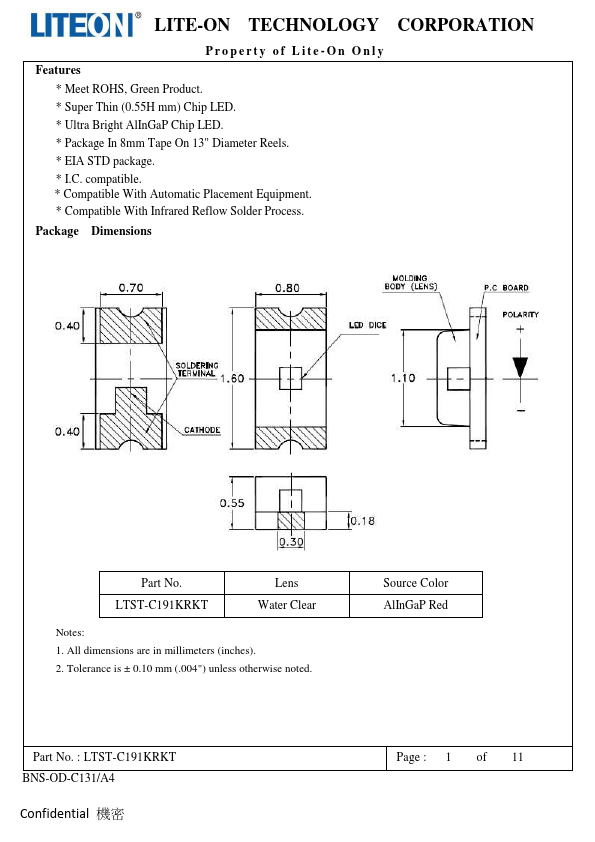

Package Dimensions
Part No. LTST-C191KRKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Source Color Al In Ga P Red
Part No. : LTST-C191KRKT BNS-OD-C131/A4
Confidential 機密
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION

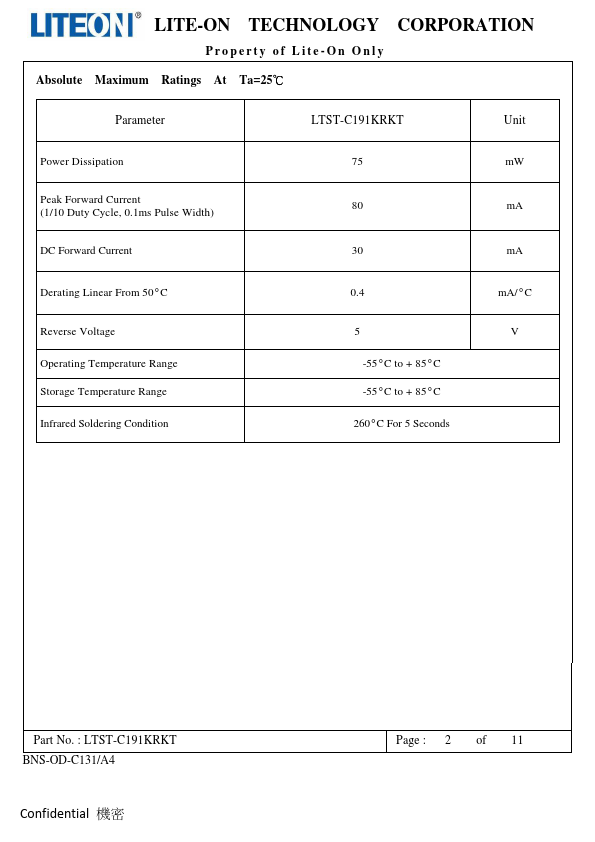

Property of Lite-On Only Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
75 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
80 m A
DC Forward Current
30 m A
Derating Linear From 50°C
Reverse Voltage Operating Temperature Range Storage Temperature Range Infrared Soldering Condition
5 -55°C to + 85°C -55°C to + 85°C
260°C For 5 Seconds m A/°C V
Part No....
