LTST-C191TBKT

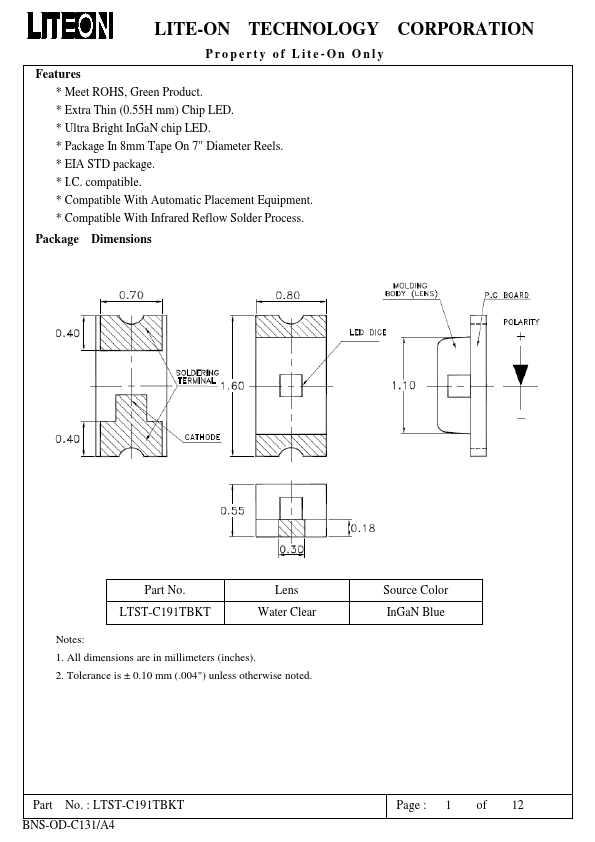

Features
- Meet ROHS, Green Product.
- Extra Thin (0.55H mm) Chip LED.
- Ultra Bright In Ga N chip LED.
- Package In 8mm Tape On 7" Diameter Reels.
- EIA STD package.
- I.C. patible.
- patible With Automatic Placement Equipment.
- patible With Infrared Reflow Solder Process. Package Dimensions
Part No. LTST-C191TBKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Source Color In Ga N Blue
Part No. : LTST-C191TBKT BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION

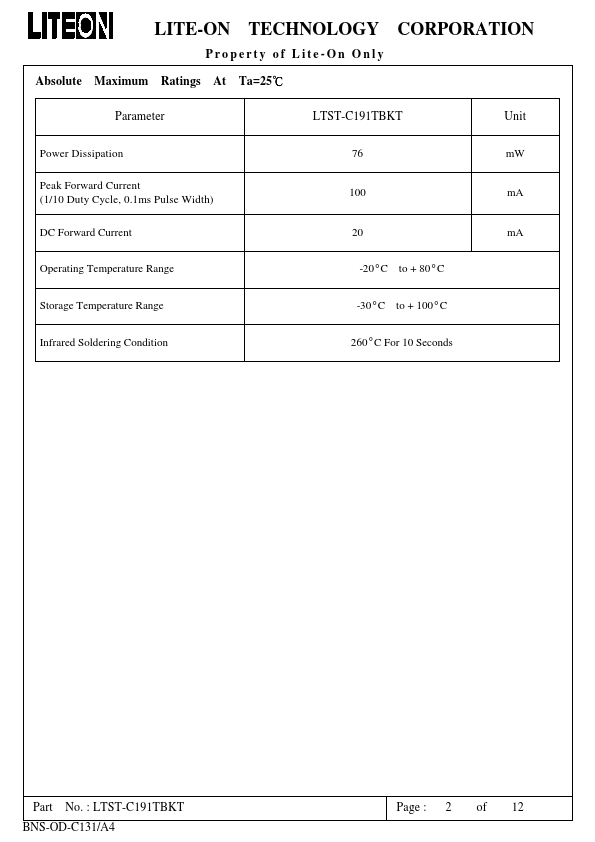

Property of Lite-On Only Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
76 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
100 m A
DC Forward Current
20 m A
Operating Temperature Range
-20°C to + 80°C
Storage Temperature Range
-30°C to + 100°C
Infrared Soldering Condition
260°C For 10 Seconds
Part No. : LTST-C191TBKT BNS-OD-C131/A4
Page : 2 of 12
LITE-ON TECHNOLOGY...
