LTST-C191TBKT-5A
Features
- Meet ROHS, Green Product.
- Extra thin (0.55H mm) Chip LED.
- Ultra bright In Ga N chip LED
- Package in 8mm tape on 7" diameter reels.
- EIA STD package.
- I.C. patible.
- patible with automatic placement equipment.
- patible with infrared reflow solder process.

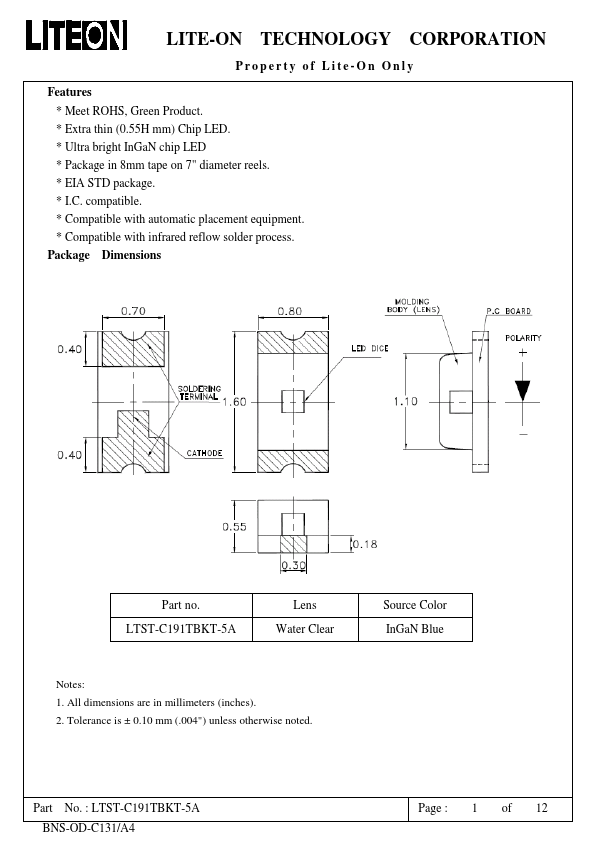

Package Dimensions
Part no. LTST-C191TBKT-5A
Lens Water Clear
Source Color In Ga N Blue
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Part No. : LTST-C191TBKT-5A BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

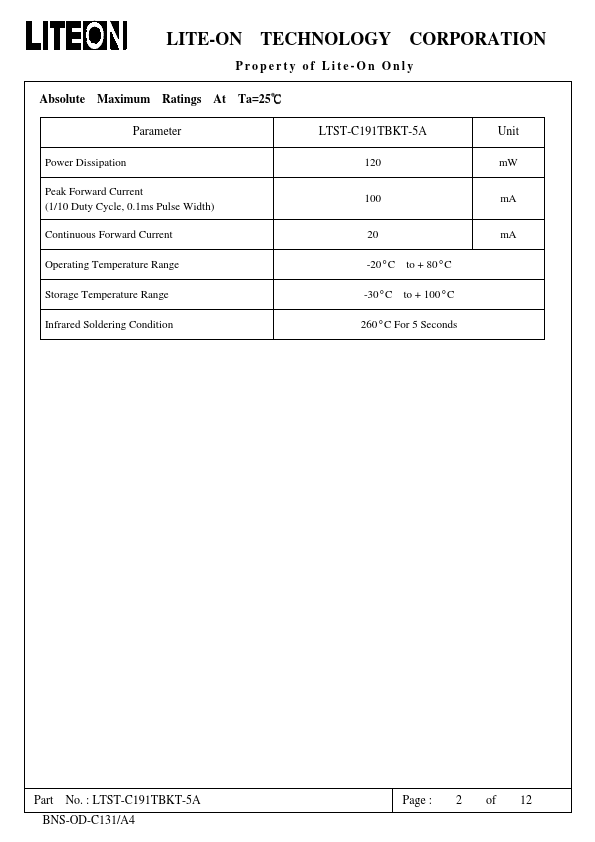

Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
120 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
100 m A
20 m A
Operating Temperature Range
-20°C to + 80°C
Storage Temperature Range Infrared Soldering Condition
-30°C to + 100°C 260°C For 5 Seconds
Part No. : LTST-C191TBKT-5A BNS-OD-C131/A4
Page : 2 of...
