LTST-E682KRKGWT - SMD LED

Name: LTST-E682KRKGWT
SKU: LTST-E682KRKGWT-1592754

LITEON

The LTST-E682KRKGWT by LITEON is a SMD LED. Below is the official datasheet preview.

Datasheet Details

Part number	LTST-E682KRKGWT
Manufacturer	LITEON
File Size	630.33 KB
Description	SMD LED
Datasheet	LTST-E682KRKGWT-LITEON.pdf

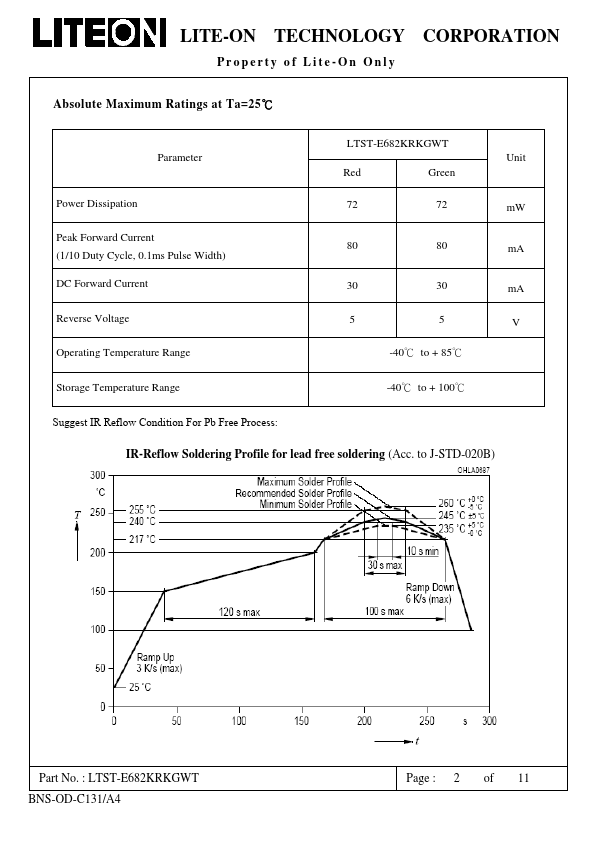

Additional preview pages of the LTST-E682KRKGWT datasheet.

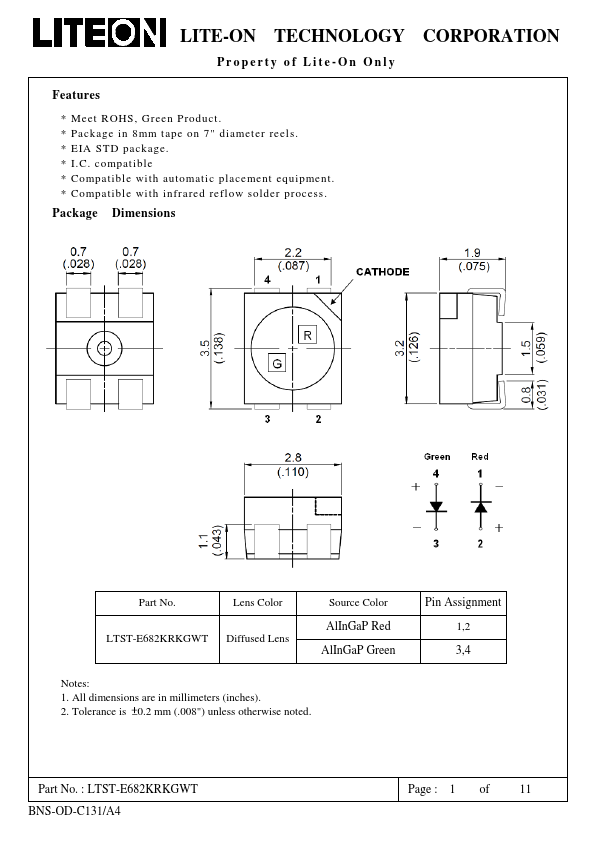

Meet ROHS, Green Product.
Package in 8mm tape on 7" diameter reels.
EIA STD package.
I. C. compatible.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process. Package Dimensions Part No. Lens Color LTST-E682KRKGWT Diffused Lens Source Color AlInGaP Red AlInGaP Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.2 mm (.008") unless otherwise noted. Pin Assignment 1,2 3,4 Part No. : LTST-E682.
