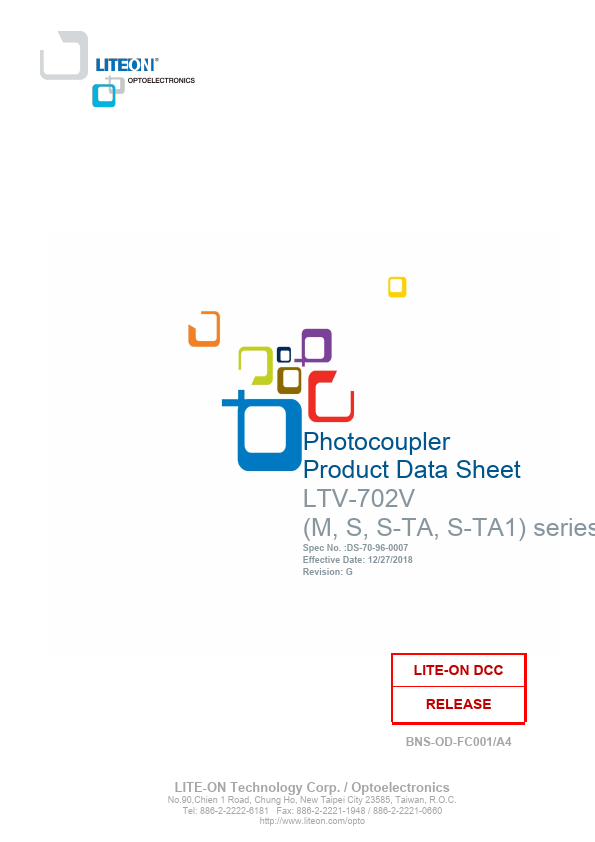

Photocoupler Product Data Sheet LTV-702V (M, S, S-TA, S-TA1) series Spec No.:DS-70-96-0007 Effective Date: 12/27/2018 Revision: G LITE-ON DCC RELEASE.
1.
 datasheet Preview Page 1 from Datasheet4u.com

LTV-702V-LITEON.pdf

This datasheet PDF includes multiple part numbers: LTV-702VM, LTV-702V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-702VM, LTV-702V

Manufacturer:

LITEON

File Size:

386.54 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-702VM, LTV-702V.
Please refer to the document for exact specifications by model.

Features

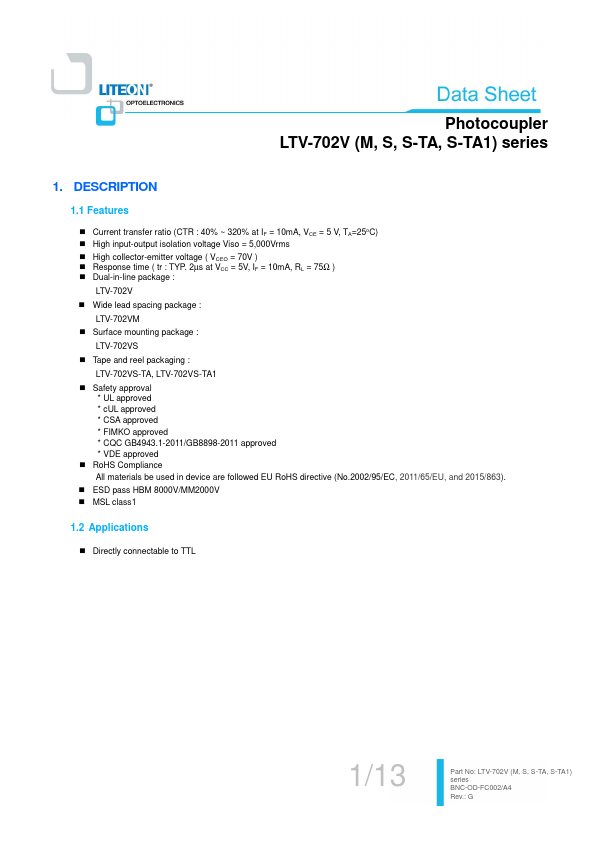

* Current transfer ratio (CTR : 40% ~ 320% at IF = 10mA, VCE = 5 V, TA=25oC) High input-output isolation voltage Viso = 5,000Vrms High collector-emitter voltage ( VCEO = 70V ) Response time ( tr : TYP. 2µs at VCC = 5V, IF = 10mA, RL = 75Ω ) Dual-in-line package : LTV-702V Wide lead spacing package : L

Applications

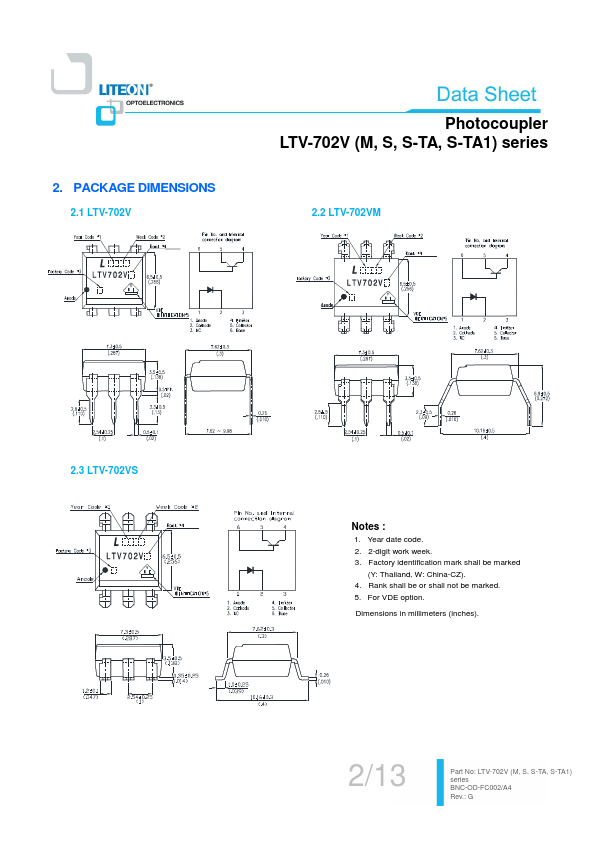

* Directly connectable to TTL 1/13 Part No: LTV-702V (M, S, S-TA, S-TA1) series BNC-OD-FC002/A4 Rev. : G 2. PACKAGE DIMENSIONS 2.1 LTV-702V Photocoupler LTV-702V (M, S, S-TA, S-TA1) series 2.2 LTV-702VM 2.3 LTV-702VS Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark
