LTV-725VM, LTV-725V - Photocoupler

LITEON

📥 Download Datasheet

LTV-725VM Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-725VM, LTV-725V. Please refer to the document for exact specifications by model.

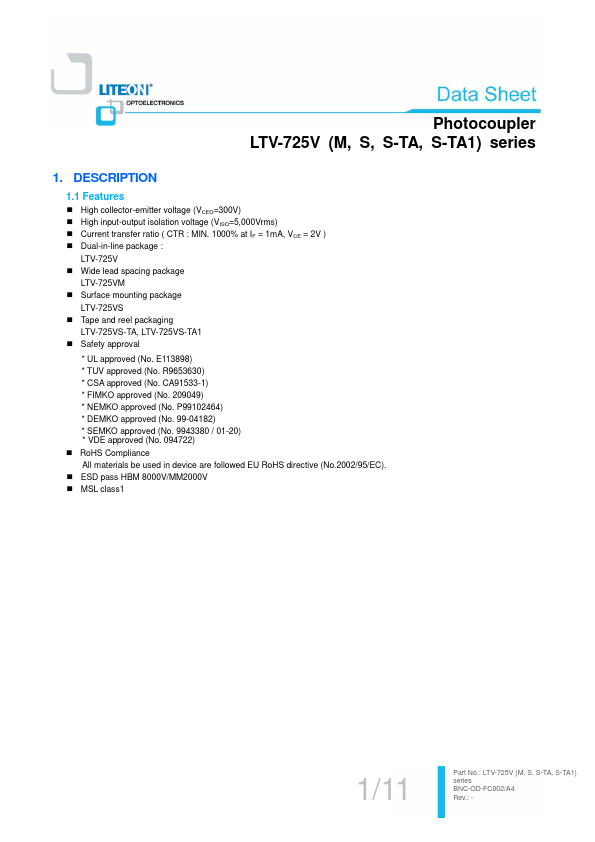

datasheet Preview Page 2

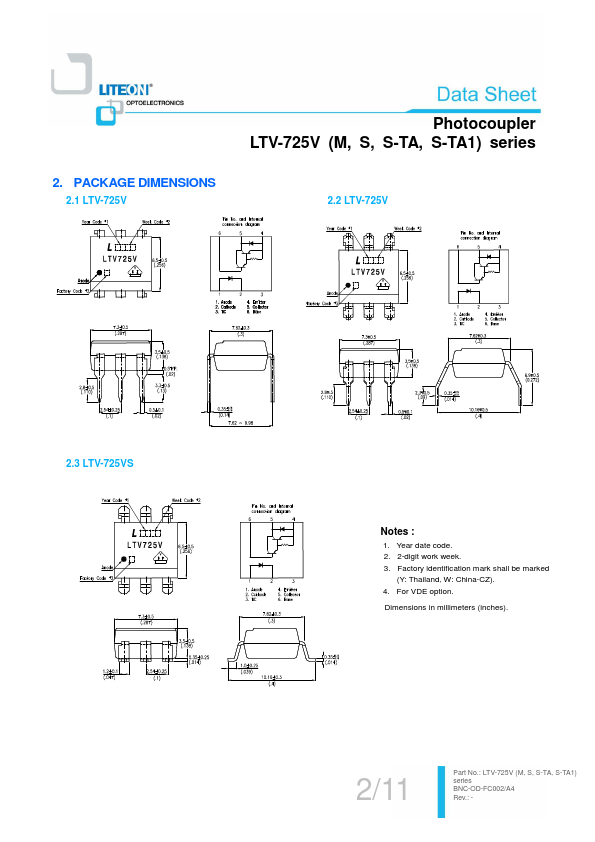

datasheet Preview Page 3

Datasheet Details

Part number	LTV-725VM, LTV-725V
Manufacturer	LITEON
File Size	558.89 KB
Description	Photocoupler
Datasheet	LTV-725V-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: LTV-725VM, LTV-725V. Please refer to the document for exact specifications by model.

LTV-725VM Product details

Description

1.1

Features

High collector-emitter voltage (VCEO=300V).
High input-output isolation voltage (VISO=5,000Vrms).
Current transfer ratio ( CTR : MIN. 1000% at IF = 1mA, VCE = 2V ).
Dual-in-line package : LTV-725V.
Wide lead spacing package LTV-725VM.
Surface mounting package LTV-725VS.
Tape and reel packaging LTV-725VS-TA, LTV-725VS-TA1.
Safety approval.
UL approved (No. E113898).
TUV approved (No. R9653630).
CSA approved (No. CA91533-1).
FIMKO approv.
