LTV-725VS, LTV-725V, Photocoupler

Photocoupler Product Data Sheet LTV-725V (M, S, S-TA, S-TA1) series Spec No.: DS-70-99-0015 Effective Date: 07/22/2016 Revision: C LITE-ON DCC RELEASE.
1. High collector-emitter voltage (VCEO=300V). High input-output isolation voltage (VISO=5,000Vrms). Current transfer ratio.

datasheet Preview Page 1 from Datasheet4u.com

LTV-725V-LITEON.pdf

LTV-725VS Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-725VS, LTV-725V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-725VS, LTV-725V

Manufacturer:

LITEON

File Size:

558.89 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-725VS, LTV-725V.
Please refer to the document for exact specifications by model.

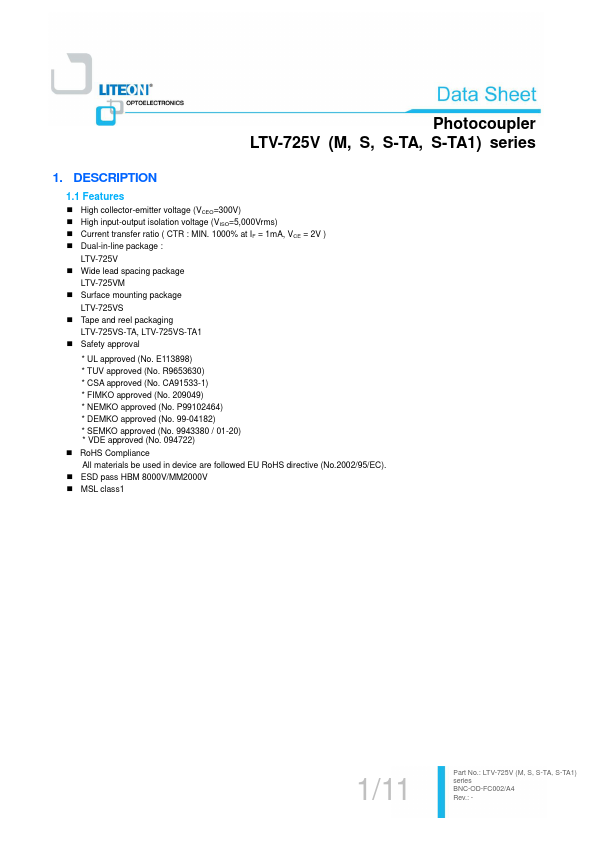

Features

* High collector-emitter voltage (VCEO=300V)
* High input-output isolation voltage (VISO=5,000Vrms)
* Current transfer ratio ( CTR : MIN. 1000% at IF = 1mA, VCE = 2V )
* Dual-in-line package : LTV-725V
* Wide lead spacing package LTV-725VM
* Surface mounting package LTV-725VS
