LTV-805XM - Photocouplers

LITEON

📥 Download Datasheet

LTV-805XM Datasheet Preview — Preview of LTV-805XM PDF

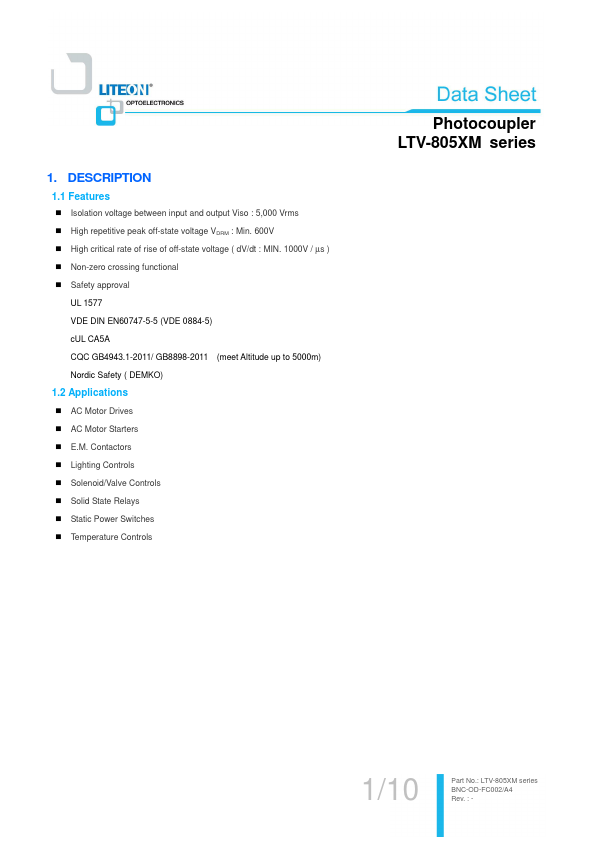

datasheet Preview Page 2

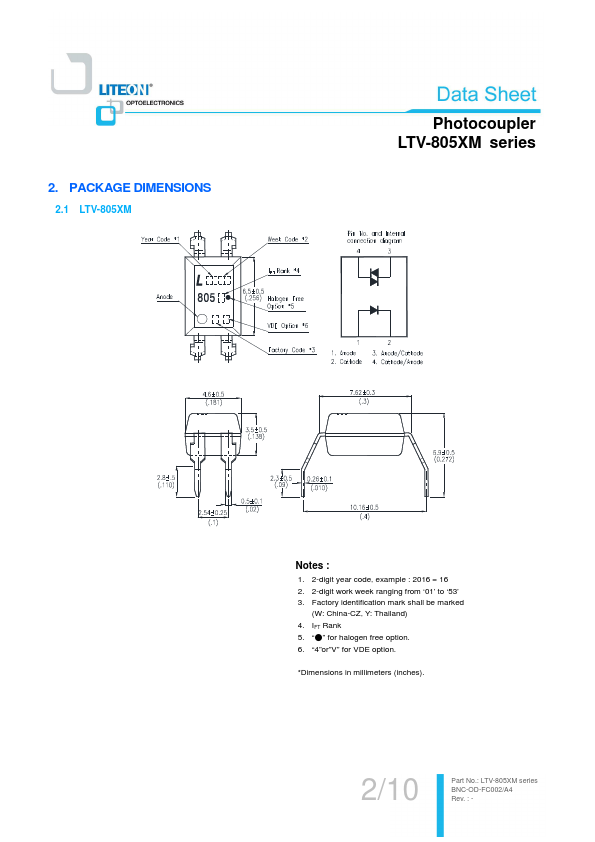

datasheet Preview Page 3

Datasheet Details

Part number	LTV-805XM
Manufacturer	LITEON
File Size	306.97 KB
Description	Photocouplers
Datasheet	LTV-805XM-LITEON.pdf

LTV-805XM Product details

Description

1.1

Features

Isolation voltage between input and output Viso : 5,000 Vrms High repetitive peak off-state voltage VDRM : Min. 600V High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / µs ) Non-zero crossing functional Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) cUL CA5A CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m) Nordic Safety ( DEMKO) 1.2.
