D35SB20, D35SB10 High Current Glass Passivated Molding Single-Phase Bridge Rectifier

D35SB20 Description

D35SB10 Thru D35SB100 High Current Glass Passivated Molding Single-Phase Bridge Rectifier Reverse Voltage 100 to 1000V Forward Current 35 A .

D35SB20 Features

* z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D35SB20, D35SB10. Please refer to the document for exact specifications by model.

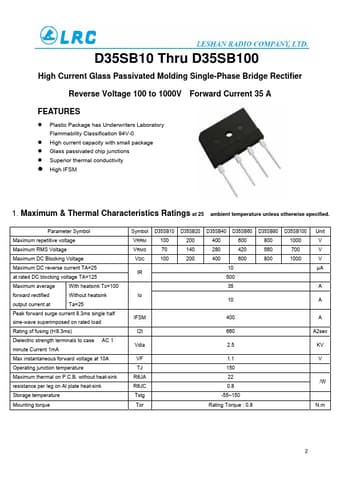

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D35SB20, D35SB10
Manufacturer
LRC
File Size
220.80 KB
Datasheet
D35SB10-LRC.pdf
Description
High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: D35SB20, D35SB10.
Please refer to the document for exact specifications by model.
