D5SB40, D5SB10 High Current Glass Passivated Molding Single-Phase Bridge Rectifier

LRC

Description

D5SB10 Thru D5SB100 High Current Glass Passivated Molding Single-Phase Bridge Rectifier Reverse Voltage 100 to 1000V Forward Current 6.0 A .

📥 Download Datasheet

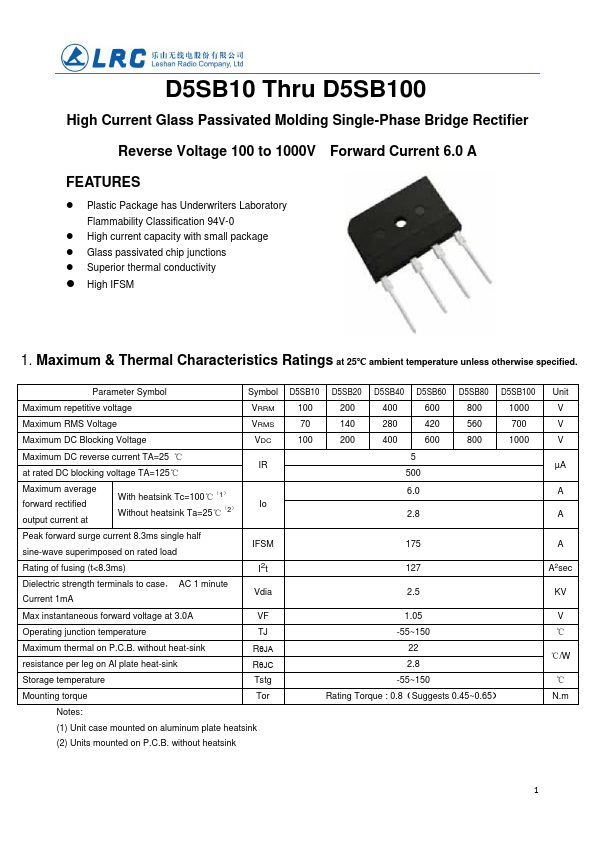

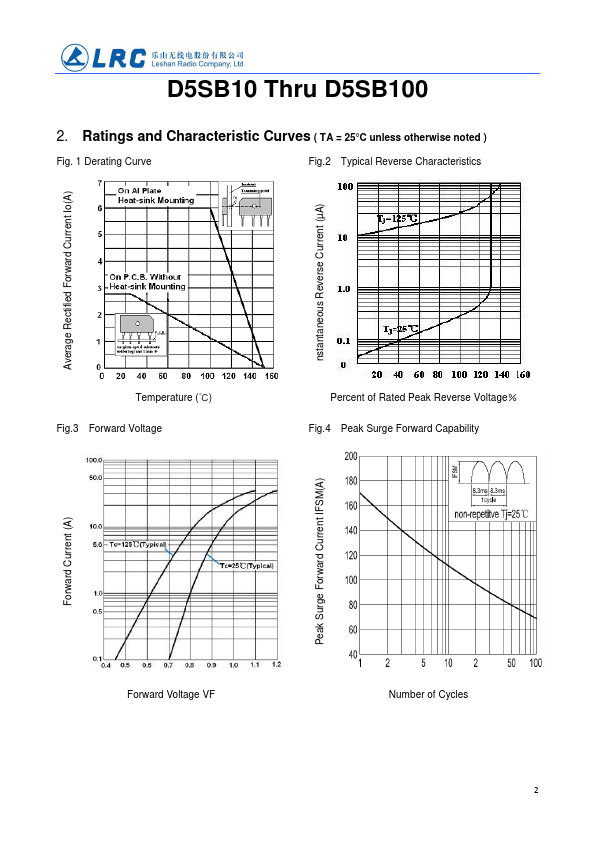

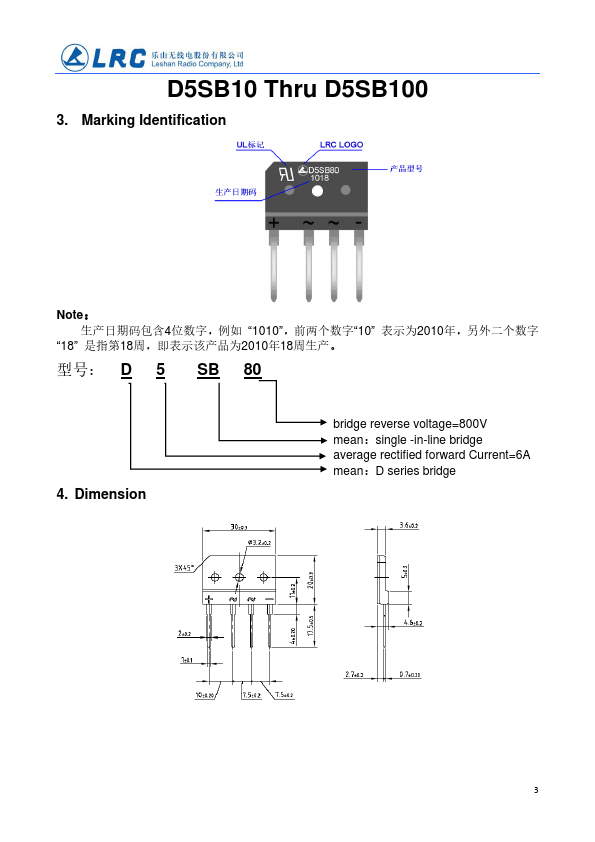

D5SB40 Datasheet Preview — This datasheet PDF includes multiple part numbers: D5SB40, D5SB10. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: D5SB40, D5SB10
Manufacturer: LRC
File Size: 638.17 KB
Datasheet: D5SB10-LRC.pdf
Description: High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: D5SB40, D5SB10.
Please refer to the document for exact specifications by model.

Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
* High current capacity with small package
* Glass passivated chip junctions
* Superior thermal conductivity
* High IFSM 1. Maximum & Thermal Characteristics Ratings at 25℃ ambient temperature unless
