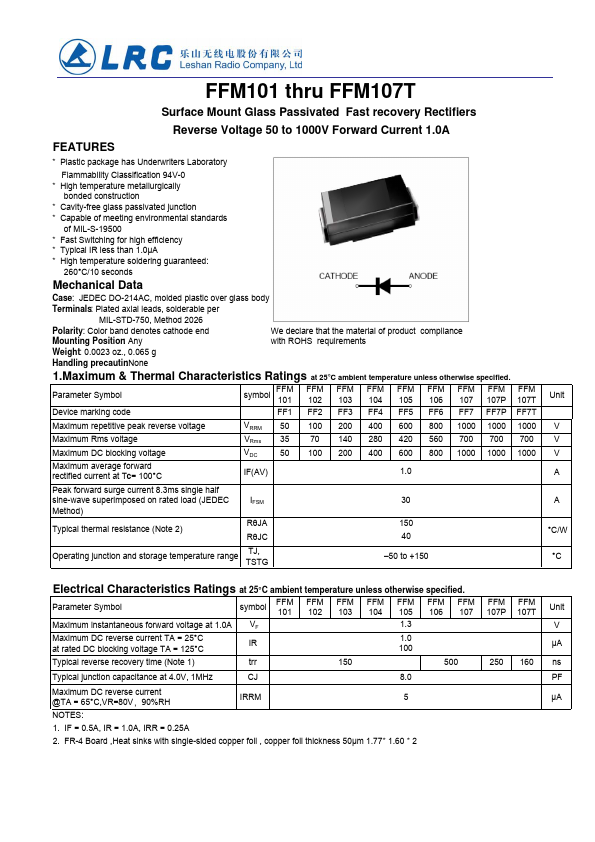

FFM106, FFM101 - 1A Surface Mount Glass Passivated Fast recovery Rectifiers

FFM106 Description

FFM101 thru FFM107T Surface Mount Glass Passivated Fast recovery Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.0A .

FFM106 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* High temperature metallurgically bonded construction
* Cavity-free glass passivated junction
* Capable of meeting environmental standards of MIL-S-19500
* Fast Switching for high efficiency

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM106, FFM101. Please refer to the document for exact specifications by model.

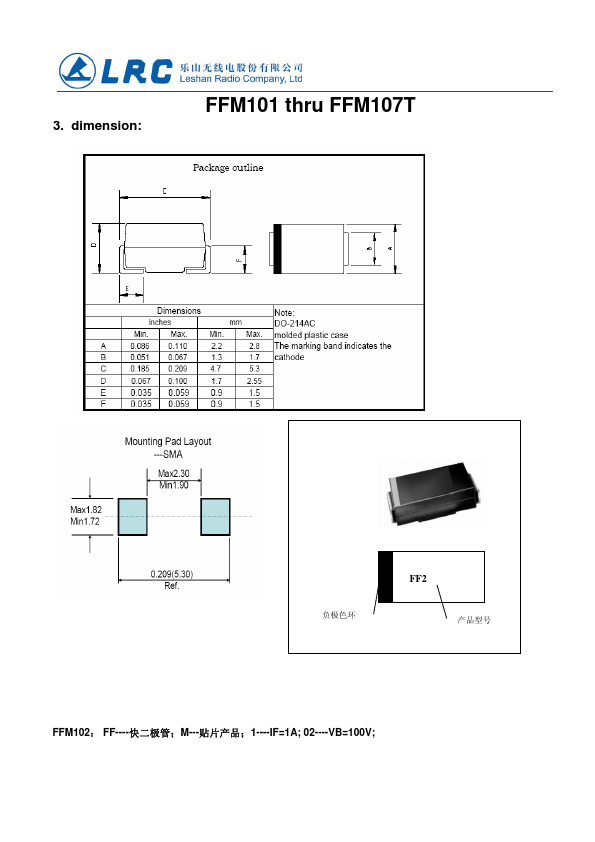

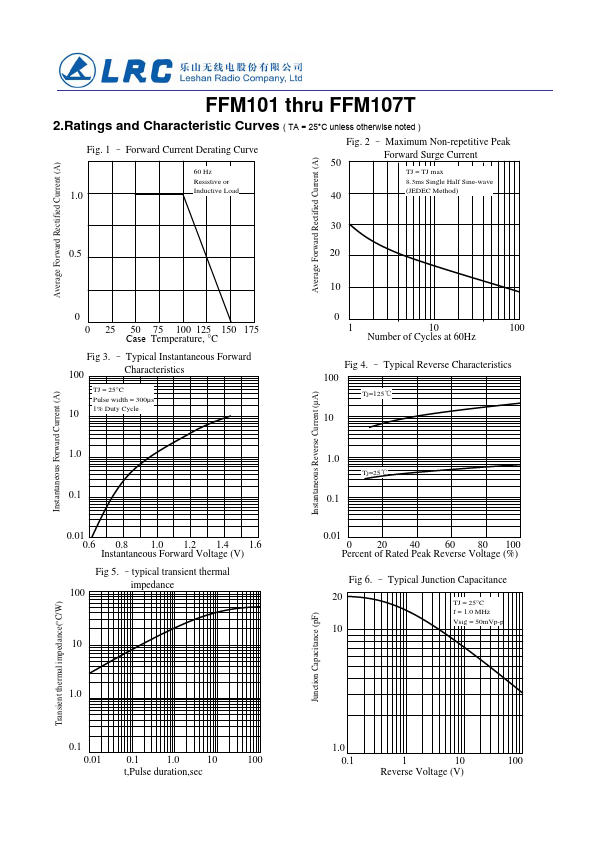

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FFM106, FFM101
Manufacturer
LRC
File Size
321.08 KB
Datasheet
FFM101-LRC.pdf
Description
1A Surface Mount Glass Passivated Fast recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: FFM106, FFM101.
Please refer to the document for exact specifications by model.
