LDTC123JET1G Bias Resistor Transistors

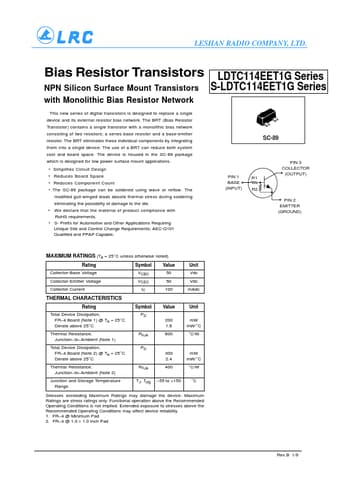

LESHAN RADIO COMPANY, LTD. Bias Resistor Transistors LDTC114EET1G Series NPN Silicon Surface Mount Transistors S-LDTC114EET1G Series with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individu.

LDTC123JET1G Features

* NESS OF BASE MATERIAL. 4. 463C-01 OBSOLETE, NEW STANDARD 463C-02. MILLIMETERS INCHES DIM MIN NOM MAX MIN NOM MAX A 1.50 1.60 1.70 0.059 0.063 0.067 B 0.75 0.85 0.95 0.030 0.034 0.040 C 0.60 0.70 0.80 0.024 0.028 0.031 D 0.23 0.28 0.33 0.009 0.011 0.013 G 0.50 BSC 0.020 BSC H 0.53 REF 0.02
