LMBR0520ET1G Schottky Barrier Rectifiers

LRC

LMBR0520ET1G Description

LMBR0520ET1G thru LMBR0540ET1G Schottky Barrier Rectifiers Reverse Voltage 20 to 40V Forward Current 0.5A .

LMBR0520ET1G Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

LMBR0520ET1G Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: SOD-323HE molded plastic over sky die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Posit

📥 Download Datasheet

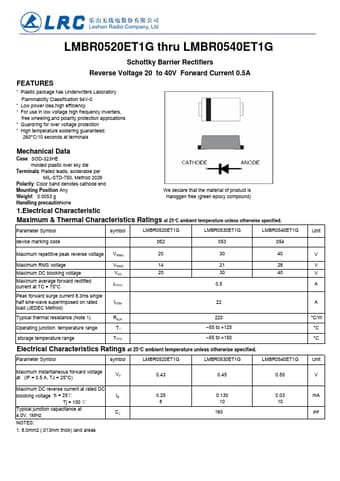

LMBR0520ET1G Datasheet Preview — Preview of LMBR0520ET1G PDF

Datasheet Details

Part number: LMBR0520ET1G
Manufacturer: LRC
File Size: 361.24 KB
Datasheet: LMBR0520ET1G-LRC.pdf
Description: Schottky Barrier Rectifiers
