LMBR0530FT1G, LMBR0520FT1G, Schottky Barrier Rectifiers

LMBR0520FT1G thru LMBR0540FT1G Schottky Barrier Rectifiers Reverse Voltage 20 to 40V Forward Current 0.5A .

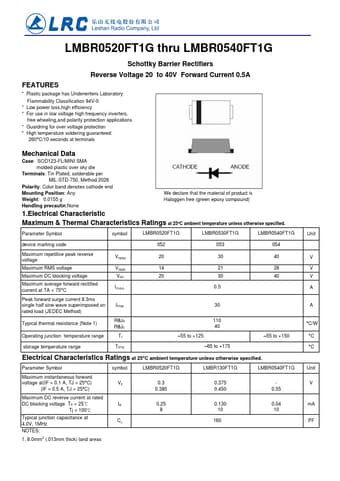

datasheet Preview Page 1 from Datasheet4u.com

LMBR0520FT1G-LRC.pdf

LMBR0530FT1G Datasheet Preview — This datasheet PDF includes multiple part numbers: LMBR0530FT1G, LMBR0520FT1G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMBR0530FT1G, LMBR0520FT1G

Manufacturer:

LRC

File Size:

872.04 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: LMBR0530FT1G, LMBR0520FT1G.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: SOD123-FL/MINI SMA molded plastic over sky die Terminals: Tin Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounti
